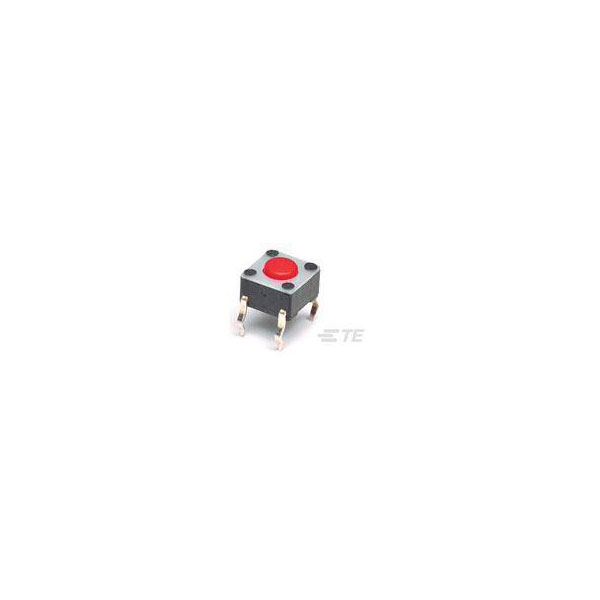

TE Connectivity 1-1825910-3 FSM8JLH 6mm High-Temp Tactile Switch

TE Connectivity's tactile switch 1-1825910-3 features a responsive actuation force for reliable user input. This durable switch is typically used in consumer electronics, automotive interfaces, and industrial control panels. Known for its high quality, the switch offers consistent performance in varied applications.

Type	Tactile Switches
Contact Configuration	SPST
Switch Function	Off-Mom
Current Rating (A)	50mA
Orientation	Vertical/ Top Actuator
Actuator Length	5.9mm
Outline Dimensions	(L x W) 6 mm x 6 mm
Illumination	None
Operating Force	100gf
Actuator Material	PBT
Actuator Type	Standard
Contact Base Material	Brass
Contact Material	Brass
Contact Plating	Silver
ELV	Compliant
Illumination Type	Non-Illuminated
Max Voltage Rating (DC)	24v
Maximum Operating Temperature	85°C
Mechanical Life	100000Cycles
Minimum Operating Temperature	-35°C
Misc Attribute	TE AMP Tactile Switches
Mount	Through Hole
Operating Temperature Range	-40 – 105
Operating Voltage	24
Packaging	Loose Piece
Packaging Method	Loose Piece
Packaging Type	Bag
Product Height	.374
RoHS Compliant	Yes
Series	FSMJ
Switch Travel	0.25mm
Termination	PC Pin
Throw Configuration	SPST
