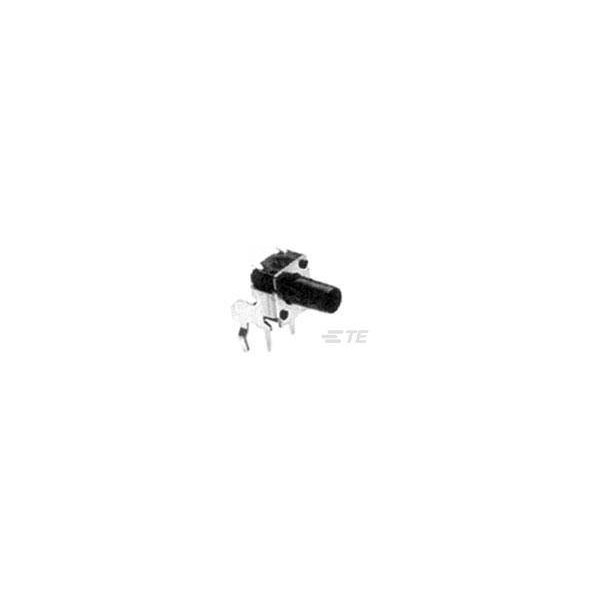

TE Connectivity 1-1825027-4 FSMRA5JH04 Tactile Switch 160g R/A Actuator

TE Connectivity manufactures the 1-1825027-4 tactile switch, known for its reliability and compact design. This switch features a responsive tactile feedback, making it ideal for precise input applications. It is commonly used in electronic devices such as remote controls and handheld gadgets.

Type	Tactile Switches
Switch Function	Off-Mom
Current Rating	50mA
Illumination	Non-Illuminated
Actuator Colour	Beige
Actuator Length	3.56mm
Actuator Material	PBT
Actuator Type	Standard
Contact Base Material	Copper Alloy
Contact Current Rating	50mA
Contact Material	Copper Alloy
Contact Plating	Silver
DC Rated Voltage	24v
Depth	10.16mm
Electrical Life	100000Cycles
Illumination Type	Non-Illuminated
Length	7.11mm
Max Current Rating	50mA
Max Voltage Rating (DC)	24v
Maximum Operating Temperature	85°C
Mechanical Life	100000Cycles
Minimum Operating Temperature	-35°C
Misc Attribute	TE AMP Tactile Switches
Mount	Through Hole
Number of Positions	2
Operating Force	1.57n
Operating Temperature Range	-40 – 105
Operating Voltage	24
Orientation	Right Angle
Packaging	Loose Piece
Packaging Method	Loose Piece
Packaging Type	Bag
Product Height	.276
Product Orientation	Right Angle
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	FSMRAJ
Switch Travel	0.25mm
Termination	PC Pins
Throw Configuration	SPST
Voltage Rating (AC)	24v
