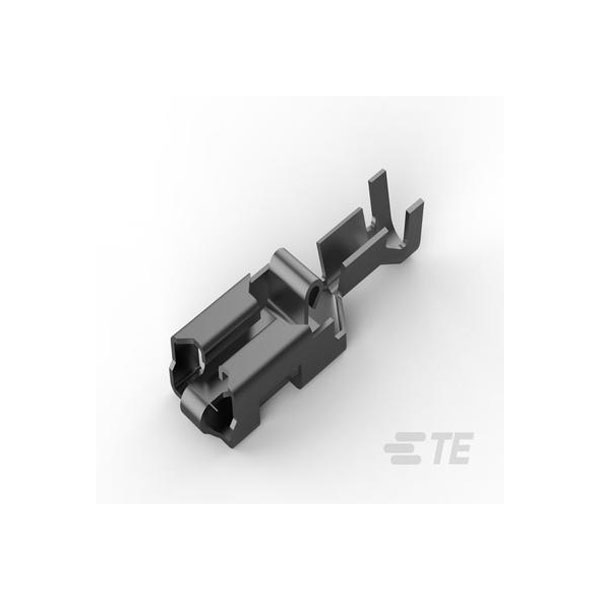

TE Connectivity 1-160759-1 terminals are female, unshrouded connectors designed for reliable electrical connections.
They feature a 250 series configuration and are supplied in reels of 1500, ideal for high-volume manufacturing.
These terminals are typically used in automotive and industrial applications.
Ensuring secure and stable connections, they support efficient assembly processes.
| Insulation |
Non-Insulated |
| Colour |
Yellow |
| Gender |
Female |
| Barrel Type |
Open |
| Compatible Insulation Diameter Range |
.09 – .13 |
| Compatible With Agency/Standards Products |
UL |
| Contact Base Material |
Brass |
| Contact Plating |
Tin |
| Contact Type |
Signal |
| Crimp Type |
F-Crimp |
| Depth |
7.35mm |
| Insulated Wire Support |
Yes |
| Insulation Diameter |
0.13inch |
| Insulation Option |
Uninsulated |
| Length |
0.88inch |
| Mating Retention Type |
Dimple |
| Mating Tab Thickness |
.032 |
| Mating Tab Width |
.25 |
| Mount |
Free Hanging, Cable |
| Operating Temperature Range |
-40 – 230 |
| Orientation |
Straight |
| Package Quantity |
1500 |
| Packaging |
Tape and Reel |
| Packaging Method |
Strip/Reel |
| Packaging Quantity |
1500 |
| Plating |
Tin |
| Product Length |
.88 |
| Product Terminates To |
Wire & Cable |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Series |
Mark I |
| Shielding |
Unshielded |
| Terminal Material |
Brass |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Pre-Tin |
| Termination |
Receptacle |
| Type |
Crimp Connector |
| Wire Gauge (Max) |
16AWG |
| Wire Gauge (Min) |
20AWG |
| Wire Insulation Support |
With |
| Wire Size |
20 – 15 |
| Wire/Cable Diameter |
0.13inch |
| Wire/Cable Type |
Discrete |
