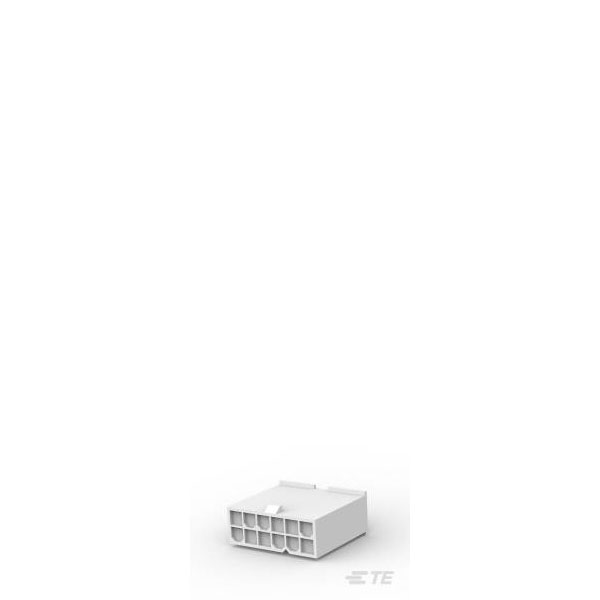

TE Connectivity 1-1586017-2 VAL-U-LOK 12P FH Plug V0 In Bag

TE Connectivity's 1-1586017-2 VAL-U-LOK is a bagged connector component. It is known for its robust design, ensuring secure electrical connections. Typical applications include automotive, industrial, and consumer electronics.

Type	Rectangular Wire & Cable Connectors & Housings
Number of Contacts	12
Gender	Male
Number of Rows	2
Approvals	CSA
Centerline (Pitch)	4.191mm
Circuit Application	Power & Signal
Colour	White
Compatible Insulation Diameter Range	.047 – .122
Compatible With Agency/Standards Products	CSA
Compatible With Approved Standards Products	UL E28476
Connector & Contact Terminates To	Wire & Cable
Connector & Housing Type	Plug
Connector Height	.378
Connector Length	1.039
Connector Mounting Type	Cable Mount (Free-Hanging)
Connector Product Type	Housing
Connector System	Wire-to-Wire
Connector Width	.937
Contact Layout	Matrix
Contact Retention	No (Without)
Contact Retention Within Housing	Without
Contact Type	Pin
Depth	23.8mm
ELV	Compliant
Flammability Rating	UL94 V-0
Glow Wire Rating	Standard Part - Not Glow Wire
Height	9.6mm
Housing Color	White
Housing Material	Nylon
Insulation Diameter	0.122inch
Lead Free	Not Applicable
Length	1.0394inch
Material	Nylon
Max Voltage Rating (AC)	600v
Maximum Operating Temperature	221°C
Minimum Operating Temperature	-40°C
Misc Attribute	TE AMP VAL-U-LOK
Mount	Free Hanging, Cable, Surface Mount
Number of Circuits	12
Operating Temperature Range	-40 – 221
Operating Voltage	600
Orientation	Straight
Package Quantity	500
Packaging	Bag
Packaging Method	Bag
Packaging Quantity	500
Packaging Type	Bag
Pitch	4.2
RoHS Compliant	Yes
Row Spacing	4.2inch
Row-to-Row Spacing	.165
Sealable	No
Selectively Loaded	No (Without)
Series	VAL-U-LOK
Termination	Crimp
Termination Method to Wire & Cable	Crimp
UL Flammability Rating	UL 94V-0
UL Rating	Recognized
VDE Tested	No
Width	23.8mm
Wire/Cable Type	Discrete
