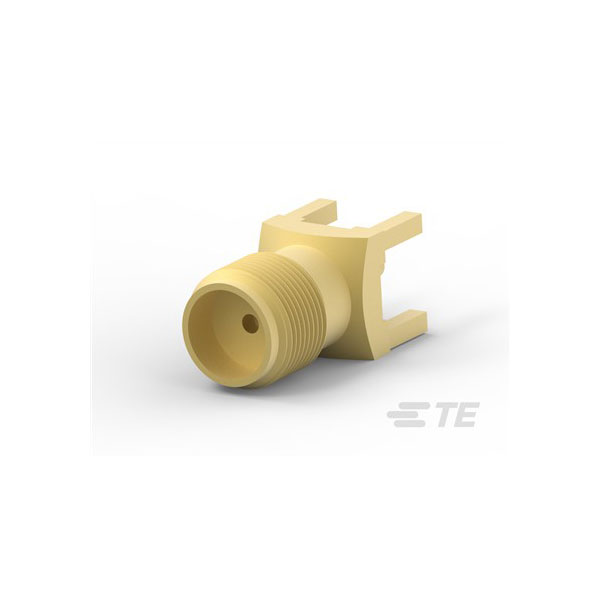

TE Connectivity's 1-1478979-0 is an SMA PCB socket featuring a female unshrouded design with gold plating.
This component offers robust connectivity and is typically used in RF applications.
With its compact size, it is suited for use in telecommunications and data transmission systems.
Its durable gold plating ensures reliable performance and corrosion resistance.
| Type |
SMA Connector |
| Impedance |
50r |
| Mounting Direction |
Straight |
| Body Material |
Stainless Steel |
| Body Plating |
Gold |
| Cable Type |
N/A (PCB Mount) |
| Center Contact Plating |
Gold |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector Mounting Type |
Board Mount |
| Connector Product Type |
Connector Assembly |
| Connector System |
Cable-to-Board |
| Contact Material |
Copper |
| Contact Plating |
Gold |
| Depth |
6.35mm |
| Dielectric Material |
PTFE |
| ELV |
Compliant |
| Frequency |
18GHz |
| Gender |
Female |
| Housing Colour |
Gold |
| Insulation Material |
Polytetrafluoroethylene |
| Length |
0.512inch |
| Material |
Stainless Steel |
| Max Frequency |
18GHz |
| Max Operating Temperature |
165°C |
| Min Operating Temperature |
-65°C |
| Mount |
Through Hole, PCB |
| Number of Contacts |
1 |
| Number of Ports |
1 |
| Number of Positions |
1 |
| Operating Frequency |
0 to 18 GHz |
| Operating Temperature Range |
-85 – 329 |
| Orientation |
Straight |
| Outside Diameter |
6.35mm |
| Package Quantity |
100 |
| Package/Case |
SMA |
| Packaging |
Bag |
| Packaging Method |
Bag |
| Packaging Quantity |
100 |
| PCB Mount Orientation |
Vertical |
| PCB Mounting Orientation |
Vertical |
| Plating |
Gold |
| Polarity |
Standard, Normal |
| Product Length |
.512 |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
Greenpar |
| Tail Length |
3.5mm |
| Termination |
Solder |
| Termination Method to PCB |
Through Hole - Solder |
| Termination Post & Tail Length |
.137 |
| Wire/Cable Type |
Coaxial |
