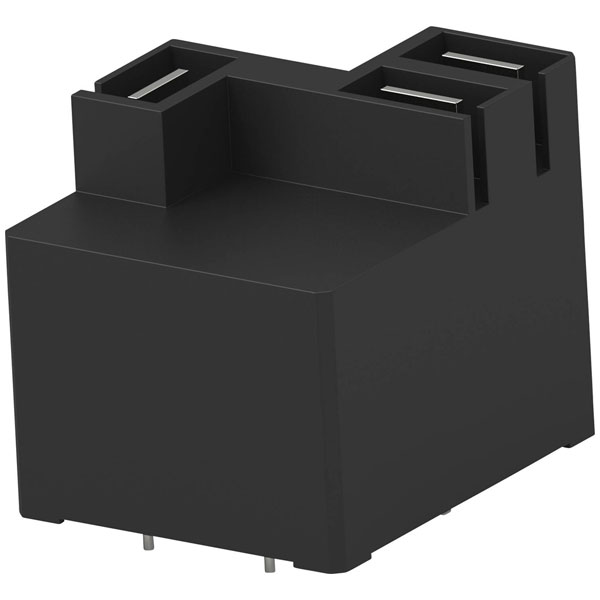

TE Connectivity 1-1419104-7 T9AS1D22-12 Industrial Relay 12V DC

MPN: 1-1419104-7
Brand: TE Connectivity
EAN-13: 2050006509708
Order Code: 07-3376
Country of Origin: China

RoHS Compliant
Free UK shipping available

View Full Product Range (7)

Inc VAT

Qty	Unit Price (Ex VAT)
2+	£3.99
15+	£3.85

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1

46 in stock, despatched in 4 working days

Product Details
Product Range
Quick Quote

The TE Connectivity 1-1419104-7 is a momentary relay with a 1 Form A SPST-NO contact configuration.

It offers a nominal operating time of 0.0 nanoseconds, indicating ultra-fast response.

This relay is typically used in industrial applications requiring reliable switching.

Its compact design makes it suitable for space-constrained environments.

Coil Voltage	12V DC
Contact Configuration	1NO
Coil Current	83mA
Coil Power	1w
Coil Resistance	144O
Coil Type	Non-Latching
Coil Voltage (AC)	12v
Coil Voltage (DC)	12v
Colour	Black
Connection	Print
Contact Current Rating	30a
Contact Material	AgCdO
Creepage distance (coil/clips)	6.36mm
Current Rating	30a
DC Rated Voltage	12v
Depth	27.43mm
Dimensions	(L x W x H) 32.5 x 27.4 x 27.9 mm
ELV	Non-Compliant
Height	27.9mm
Lead Free	Lead Free
Length	32.5mm
Max Current Rating	30a
Max Operating Temperature	85°C
Max Voltage Rating (AC)	400v
Max. temperature	+85°C
Min Operating Temperature	-55°C
Minimum Temperature	-55°C
Misc Attribute	T9AS1D22-12
Mount	Through Hole
Nominal Voltage	12V DC
Number of Contacts	1
Operate Time	15ms
Packaging	Bulk
Power Consumption	1w
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Termination	PC Pin
Throw Configuration	SPST
Type	Industrial relay
Voltage Rating (AC)	277v
Weight	33g
Width	27.4mm
