TE Connectivity 1-1393788-6 RF Relay 2 Form C DPDT Momentary 0.006A 24V

MPN: 1-1393788-6
Brand: TE Connectivity
Order Code: 14-8847
Country of Origin: Czech Republic

RoHS Compliant

Inc VAT

Qty	Unit Price (Ex VAT)
150+	£1.66

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 150

Available to back orderBack order, lead time 4 months

Product Details
Quick Quote

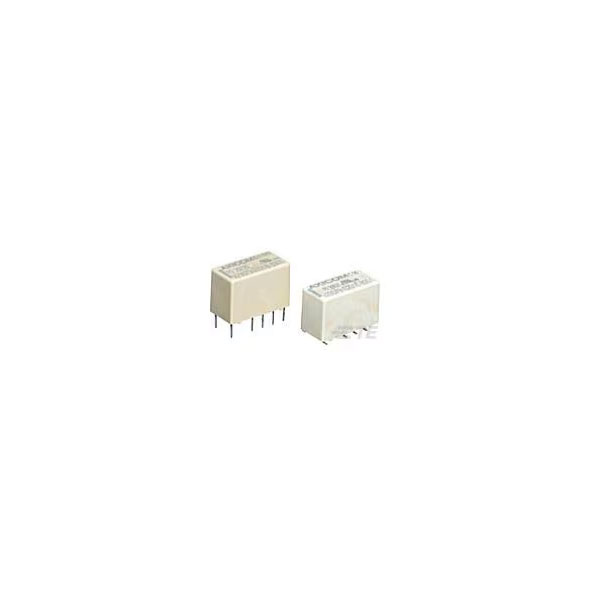

The TE Connectivity 1-1393788-6 is a radio frequency relay with a 2 Form C DPDT configuration.

It operates momentarily with a current rating of 0.006 amps and a voltage of 24 volts.

This relay is typically used in applications requiring minimal space and weight, such as telecommunications or aviation systems.

Its design ensures reliable signal switching at high frequencies.

Type	Signal Relay
Coil Voltage	24V
Contact Configuration	DPDT
Switching Current	2A
Coil Resistance	4.114kRO
Length	14.5mm
Width	7.2mm
Height	9.8mm
Actuating System	DC
Application(s)	SIGNAL
Coil Current	5.83mA
Coil Power	150mW
Coil Type	Non-Latching
Coil Voltage (AC)	24v
Coil Voltage (DC)	24v
Contact Current Rating	2a
Contact Material	Gold, Silver
Contact Plating	Gold
Contact Voltage Rating (DC)	220v
DC Rated Voltage	220v
Depth	7.2mm
ELV	Compliant
Flammability Rating	UL94 V-0
Insertion Loss	0.02dB
Lead Free	Lead Free
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Mount	Through Hole, PCB
Number of Contacts	2
Operate Time	4ms
Package/Case	DIP
Packaging	Box
Power Consumption	140mW
Radiation Hardening	No
Ratings	IP67
Reach SVHC Compliant	Unknown
Relay Type	Relay
Release Time	4ms
RoHS Compliant	Yes
Series	V23079, AXICOM
Termination	Through Hole
Throw Configuration	DPDT
Weight	0.0988oz
