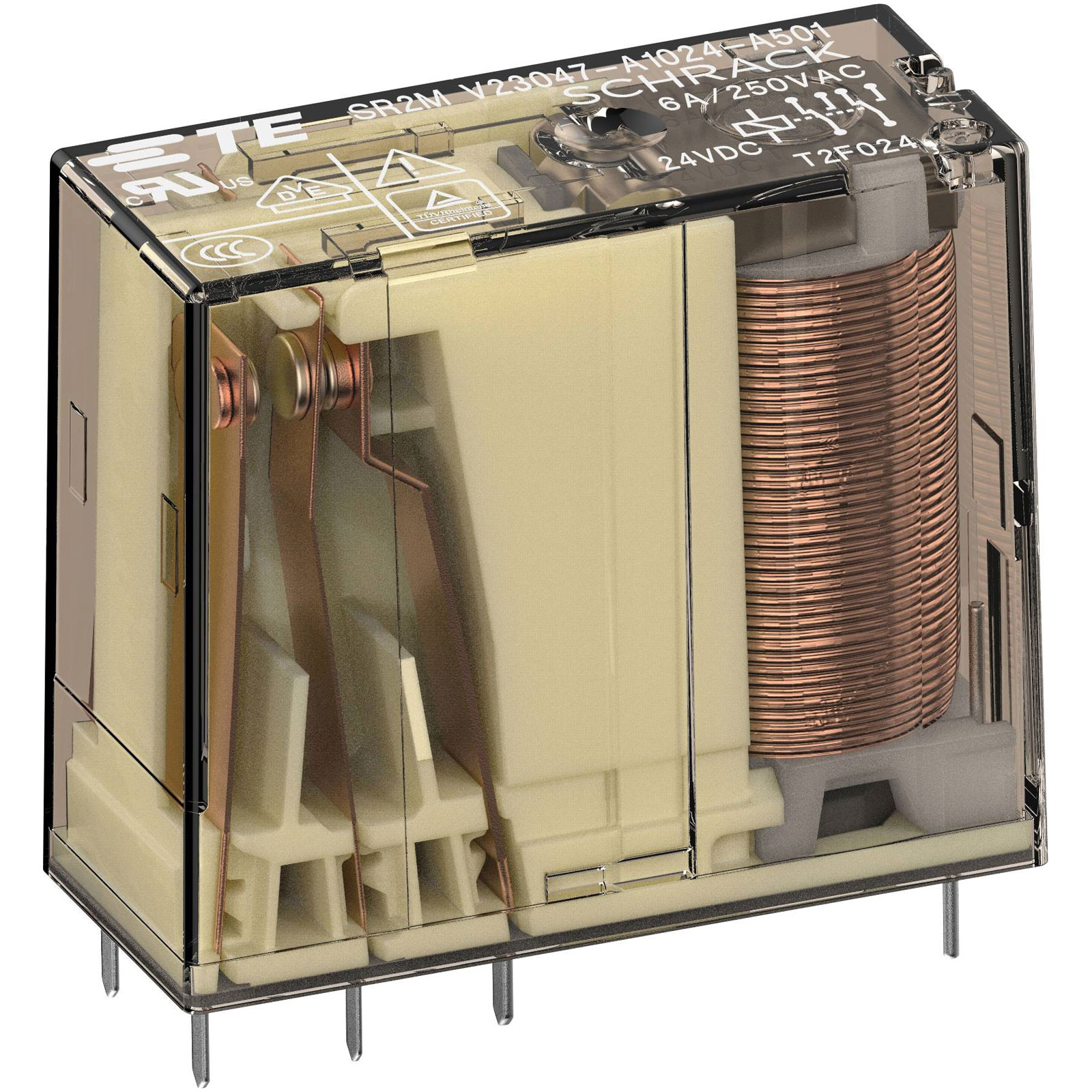

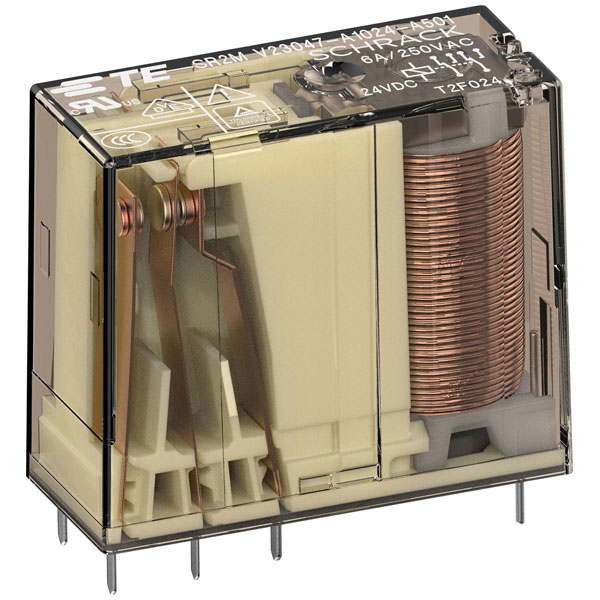

TE Connectivity 1-1393258-7 Industrial Relay 24 V DC Nominal Voltage

MPN: 1-1393258-7
Brand: TE Connectivity
EAN-13: 2050006509623
Order Code: 07-3356
Country of Origin: Czech Republic

RoHS Compliant
Free UK shipping available

View Full Product Range (7)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£5.08
10+	£4.86
15+	£4.74

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched within 4 working days - 152 in stock

Product Details
Product Range
Data Sheets
Quick Quote

The TE Connectivity 1-1393258-7 is a safety relay with a 1FormAb DPST configuration.

It features a momentary operation, enhancing control and safety in electrical circuits.

Typical applications include industrial automation where reliable circuit interruption is essential.

This relay ensures effective performance in safeguarding systems.

Coil Voltage	24V DC
Contact Configuration	DPST (to be defined)
Application(s)	GENERAL PURPOSE
Coil Current	29.2mA
Coil Power	700mW
Coil Resistance	823O
Coil Type	Non-Latching
Coil Voltage (DC)	24v
Connection	THT
Contact Current Rating	6a
Contact Material	AgNi
Creepage distance (coil/clips)	8mm
Current Rating	6a
Depth	12.6mm
Dimensions	(L x W x H) 29 x 12.6 x 25.5 mm
ELV	Compliant
Height	25.5mm
Length	29.0mm
Max Current Rating	6a
Max Voltage Rating (AC)	400v
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-25°C
Misc Attribute	V23047A1024A511
Mount	Through Hole, PCB
Nominal Voltage	24V DC
Number of Contacts	2
Package Quantity	20
Ratings	IP67
Reach SVHC Compliant	Unknown
Relay Type	Safety RELAY
RoHS Compliant	Yes
Series	SR2M, SCHRACK
Termination	PC Pin
Throw Configuration	DPST, SPST
Type	Industrial relay
Weight	20g
Width	12.6mm
