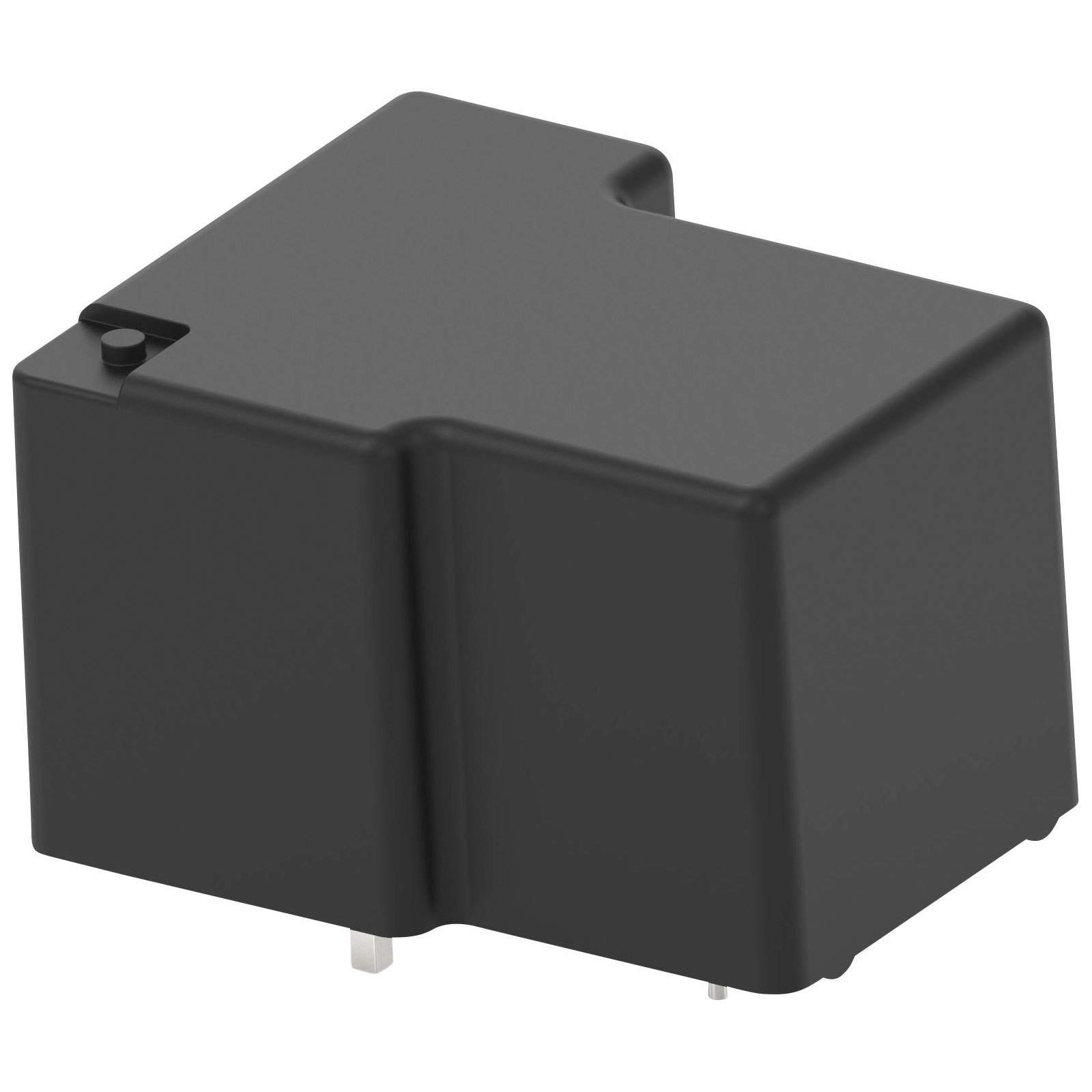

Image Representative of Range

TE Connectivity 1-1393212-0 T92S7D12-24 Relay 24V DC Industrial Use

MPN: 1-1393212-0
Brand: TE Connectivity
EAN-13: 2050006505854
Order Code: 07-3343
Country of Origin: China

RoHS Compliant
Free UK shipping available

View Full Product Range (7)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£13.44
2+	£12.73
3+	£12.10
4+	£11.52
5+	£10.99

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched within 4 working days - 8 in stock

Product Details
Product Range
Data Sheets
Quick Quote

The TE Connectivity 1-1393212-0 is a SPST-NO relay with a momentary Form A contact configuration.

It is designed for power and signal switching applications.

This relay is known for its high reliability and compact size.

Typical applications include use in automotive and industrial systems for efficient control tasks.

Coil Voltage	24V DC
Contact Configuration	2NO
Application(s)	POWER
Coil Current	68.57mA
Coil Power	1.7w
Coil Resistance	350O
Coil Type	Non-Latching
Coil Voltage (DC)	24v
Connection	THR
Contact Current Rating	30a
Contact Material	AgCdO
Creepage distance (coil/clips)	8mm
Current Rating	30a
DC Rated Voltage	24v
Depth	34.54mm
Dimensions	(L x W x H) 52.32 x 34.54 x 30.73 mm
ELV	Non-Compliant
Height	30.73mm
Length	52.3 mm
Max Current Rating	30a
Max Operating Temperature	85°C
Max Voltage Rating (AC)	600v
Max. temperature	+85°C
Min Operating Temperature	-55°C
Minimum Temperature	-55°C
Misc Attribute	T92S7D12-24
Mount	Through Hole, PCB
Nominal Voltage	24V DC
Operate Time	15ms
Package Quantity	30
Packaging	Tray
Power Consumption	1.7w
Radiation Hardening	No
Ratings	IP67
Reach SVHC Compliant	Unknown
Relay Type	General Purpose
Release Time	15ms
RoHS Compliant	Yes
Series	T92
Termination	PC Pin
Throw Configuration	DPST
Type	Industrial relay
Voltage Rating (AC)	600v
Weight	86g
Width	34.54mm
