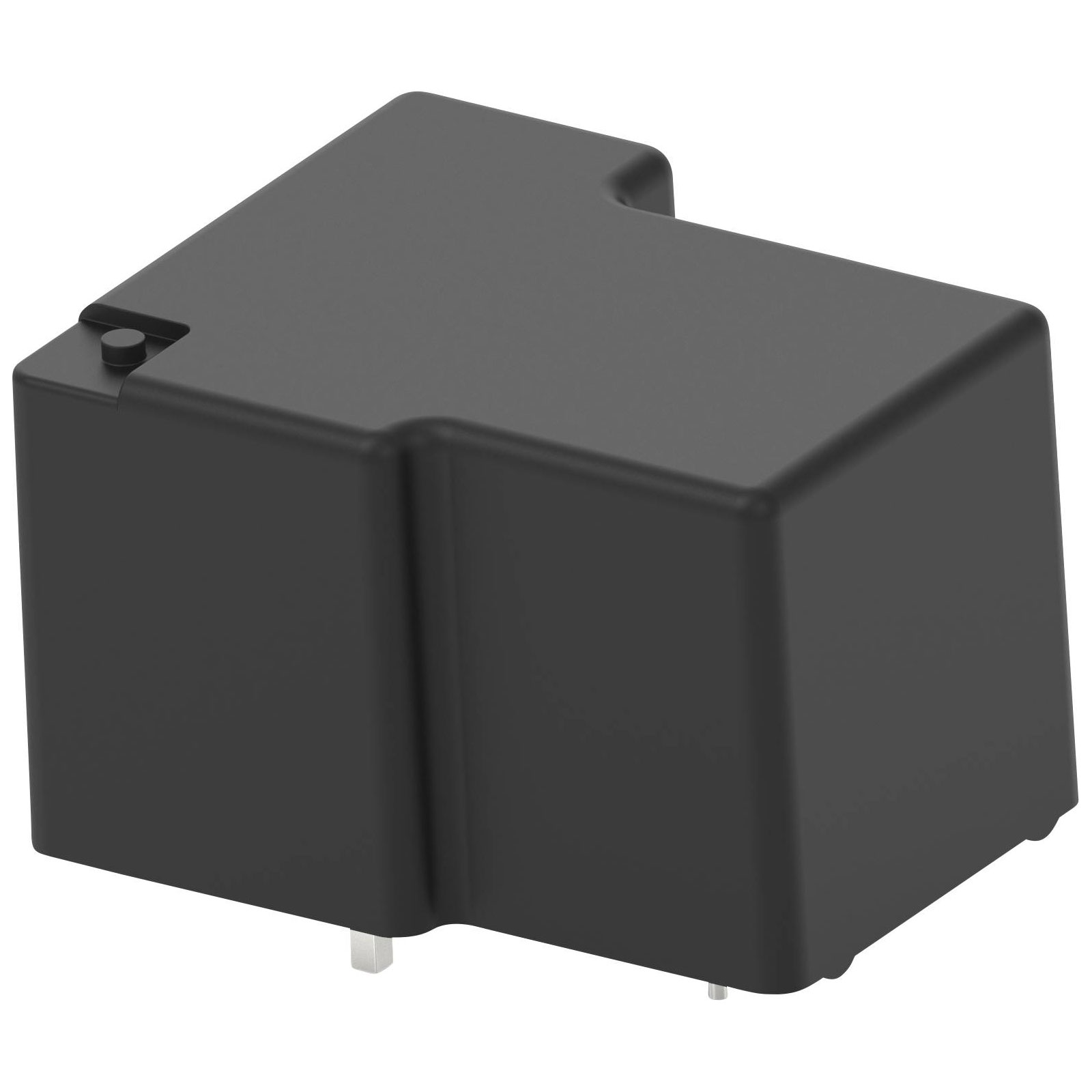

TE Connectivity 1-1393210-8 T9AS1D12-24 Relay 24V DC Industrial Use

TE Connectivity manufactures the T9AS1D12-24 industrial relay with a nominal voltage of 24 V DC. This relay is designed for high-performance applications, offering reliable switch action suitable for industrial environments. Typical applications include automation equipment, power distribution systems, and control panels.

Coil Voltage	24V DC
Contact Configuration	1NO
Coil Current	42mA
Coil Power	1w
Coil Resistance	576O
Coil Type	Non-Latching
Coil Voltage (AC)	24v
Coil Voltage (DC)	24v
Colour	Black
Connection	THT
Contact Current Rating	30a
Contact Material	AgCdO
Creepage distance (coil/clips)	6.36mm
Current Rating	30a
DC Rated Voltage	24v
Depth	27.43mm
Dimensions	(L x W x H) 32.5 x 27.4 x 20.4 mm
ELV	Non-Compliant
Height	20.4mm
Length	32.5mm
Max Current Rating	30a
Max Operating Temperature	85°C
Max Voltage Rating (AC)	277v
Max. temperature	+85°C
Min Operating Temperature	-55°C
Minimum Temperature	-55°C
Misc Attribute	T9AS1D12-24
Mount	Through Hole
Nominal Voltage	24V DC
Operate Time	15ms
Power Consumption	1w
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Termination	PC Pin
Throw Configuration	SPST
Type	Industrial relay
Voltage Rating (AC)	277v
Weight	26g
Width	27.4mm
