TE Connectivity 1-1337597-0 Connector SMB Straight Plug Male 50 Ohm Gold Plt

MPN: 1-1337597-0
Brand: TE Connectivity
Order Code: 14-5202
Country of Origin: China

RoHS Compliant

Inc VAT

Qty	Unit Price (Ex VAT)
40+	£4.35

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 40

Despatched within 5 working days - 200 in stock

Product Details
Quick Quote

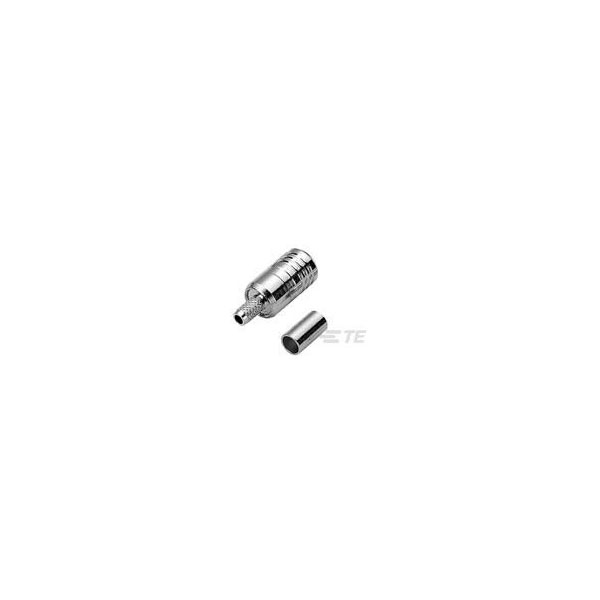

TE Connectivity's 1-1337597-0 is a gold-plated SMB straight plug connector with a male end, designed for 50 ohm applications.

This connector offers excellent signal integrity for high-frequency transmissions.

It is widely used in telecommunications and broadcasting equipment.

The gold plating ensures reliable connectivity and corrosion resistance.

Impedance	50r
Mounting Direction	Straight
Body Material	Brass
Body Plating	Gold
Center Contact Plating	Gold
Contact Material	Copper
Contact Plating	Gold
Dielectric Material	PTFE
ELV	Compliant
Gender	Male
Housing Colour	Gold
Insertion Loss	0.3dB
Lead Free	Not Applicable
Length	15.7mm
Mating cycles	500
Max Frequency	4GHz
Maximum Operating Temperature	165°C
Minimum Operating Temperature	-65°C
Mount	Free Hanging, Cable
Number of Ports	1
Orientation	Straight
Package Quantity	100
Package/Case	SMB
Packaging	Tray
Polarity	Normal
Radiation Hardening	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	Greenpar
Termination	Crimp
Voltage Rating	335v
