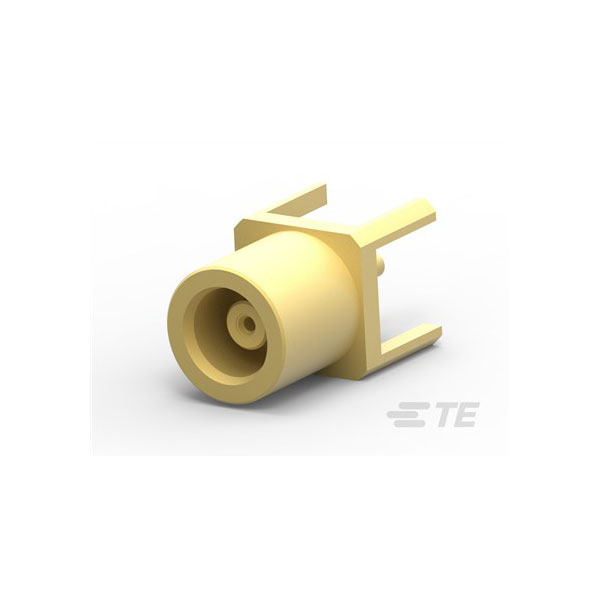

TE Connectivity 1-1337581-0 MCX Socket Female PCB 50Ohm Gold Plated

Inc VAT

Qty	Unit Price (Ex VAT)
30+	£4.79

Sign in for personalised pricing

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 30

Despatched within 5 working days - 783 in stock

The TE Connectivity 1-1337581-0 is an MCX socket designed for female PCB applications.

It features a 50 Ohm impedance and gold-plated contacts for enhanced conductivity and corrosion resistance.

This high-performance connector is suitable for RF and microwave applications.

Common uses include telecommunications and data transmission equipment.

Type	Fibre Optic Socket
Impedance	50r
Mounting Direction	Straight
Body Material	Brass
Body Plating	Gold
Cable Type	N/A (PCB Mount)
Center Contact Plating	Gold
Connector & Contact Terminates To	Printed Circuit Board
Connector Mounting Type	Board Mount
Connector System	Cable-to-Board
Contact Material	Copper
Contact Plating	Gold
Depth	5.7mm
Dielectric Material	PTFE
Gender	Female
Housing colour	Gold
Insertion Loss	0.1dB
Insulation Material	Polytetrafluoroethylene
Length	6mm
Max Frequency	6GHz
Maximum Operating Temperature	165°C
Minimum Operating Temperature	-65°C
Mount	Through Hole
Number of Ports	1
Number of Positions	1
Operating Frequency	0 to 6 GHz
Operating Temperature Range	-85 – 329
Orientation	Straight
Package Quantity	50
Packaging	Bulk
Packaging Method	Container
Packaging Quantity	50
PCB Mount Orientation	Vertical
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	0.126inch
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No
Series	MCX
Termination	Solder
Termination Method to PCB	Through Hole - Solder
Termination Post & Tail Length	.157
Voltage Rating	335v
