TE Connectivity 1-1337481-0 SMB R/A PCB SKT 50Ohm Gold Plt Female

Inc VAT

Qty	Unit Price (Ex VAT)
40+	£6.50

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 40

Available to back orderBack-order availability date - 10/06/2026

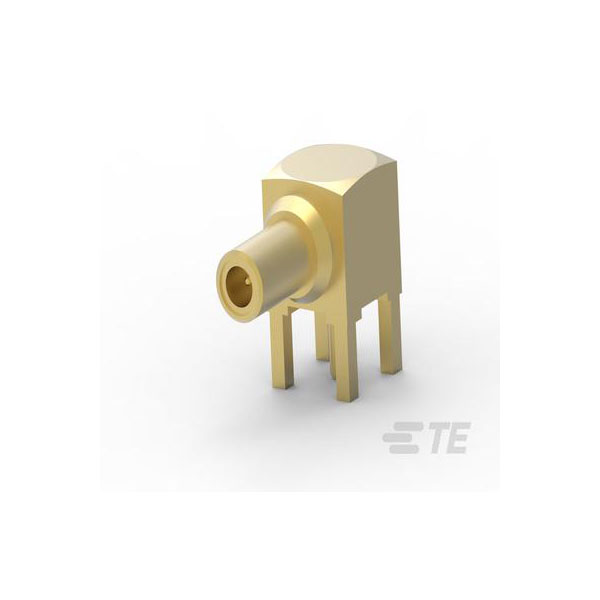

TE Connectivity 1-1337481-0 is a right-angle SMB PCB socket designed for 50 Ohm connections.

It features a gold-plated female contact for enhanced conductivity and corrosion resistance.

The connector is suitable for high-frequency applications in telecommunications, broadcast, and data communication systems.

Its compact size and reliable connection make it ideal for use in printed circuit boards.

Type	Coax Connectors
Mounting Direction	Right angle
Cable Type	N/A (PCB Mount)
Connector & Contact Terminates To	Printed Circuit Board
Connector Mounting Type	Board Mount
Connector Product Type	Connector Assembly
Connector System	Cable-to-Board
Contact Gender	MALE
Dielectric Withstanding Voltage	750VAC
Maximum Operating Temperature	165
Minimum Operating Temperature	-65
Mounting Style	RIGHT ANGLE
Number of Ports	1
Number of Positions	1
Operating Temperature Range	-85 – 329
Packaging Method	Tray
Packaging Quantity	100
PCB Mount Orientation	Right Angle
Product Length	.432
Rated Current (Signal)	1.5
Reliability	COMMERCIAL
Sealable	No
Termination Method to PCB	Through Hole - Solder
Termination Post & Tail Length	.153
Termination Type	SOLDER
Total Number of Contacts	1
