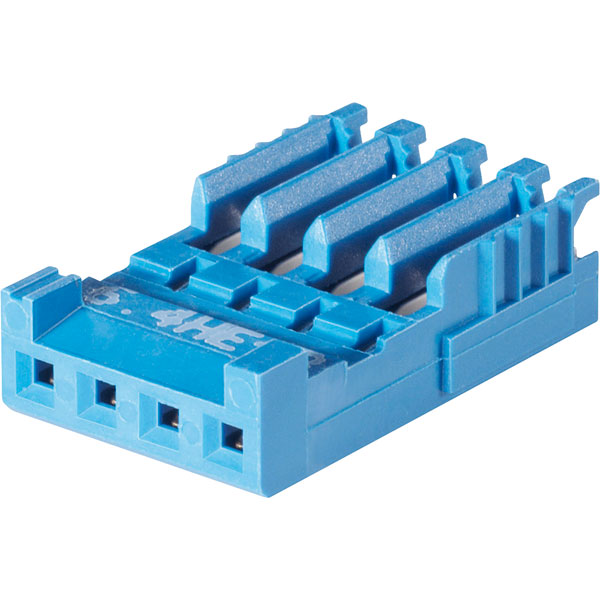

TE 281784-4 HE13 IDC Housing 180 Degree 1 x 4P 26-24AWG Blue

TE Connectivity
Order Code:

63-8084

Brand: TE Connectivity MPN: 281784-4
Qty Unit Price (Ex VAT)
10+ £0.591
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 5
1,841 in stock, despatched in 4 working days

These IDC socket housings with 0.1in. pitch from TE Connectivity feature a detent lock for safety and gold plated contacts.


  • Product type: Connector
  • Connector type: Socket Housing
  • Applies to: Wire/Cable
  • Colour: Blue
  • Length: 10.96mm
  • Height: 5.1mm ( 5.1 in )
  • Number of positions per row: 4
  • Number of rows: 1
  • Row-to-row spacing: 2.54mm (.1 in )
  • Contact base material: Phosphor Bronze
  • Housing material: PBT GF
  • UL flammability rating: UL94 V-0
  • Contact current rating (A): 3
  • Termination method to wire/cable: Insulation Displacement Crimp (IDC)
  • Wire size (AWG): 26 - 24
  • Wire size (mm²): .12 -.24
  • Mating alignment type: Polarization
  • Insulation diameter: 1.2mm (.047 in )
  • Contact layout: Inline
  • Packaging quantity: 1
  • Mftrs part no. 281784-4
Type Rectangular Wire & Cable Connectors & Housings
Number of Ways 4
Pitch 2.54mm
Number of Rows 1
Mounting Type Cable
Strain Relief No
Centerline (Pitch) 2.54mm
Circuit Application Signal
Color Blue
Compatible Insulation Diameter Range .047
Connector & Contact Terminates To Wire & Cable
Connector & Housing Type Receptacle
Connector Height .701
Connector Length .431
Connector Mounting Type Cable Mount (Free-Hanging)
Connector Product Type Connector Assembly
Connector System Wire-to-Board
Contact Base Material Phosphor Bronze
Contact Current Rating 3a
Contact Current Rating (Max) 3
Contact Gender Female
Contact Material Bronze
Contact Plating Gold
Contact Type Receptacle
Contact Underplating Material Nickel
Current Rating 3a
Depth 17.8mm
ELV Compliant
Flammability Rating UL94 V-0
Gender Male
Glow Wire Rating Standard Part - Not Glow Wire
Height 5.1mm ( 5.1 in )
Housing Color Blue
Housing Material PBT GF
Insulation Diameter 1.2mm
Insulation Resistance 5000
Lead Free Lead Free
Length 10.96mm
Mating Alignment No (Without)
Mating Connector Lock No (Without)
Mating Retention With
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Mount Free Hanging, Cable
Number of Contacts 4
Number of Positions 4
Operating Temperature Range -67 – 257
Orientation Straight
Package Quantity 500
Packaging Loose Piece
Packaging Method Box
Packaging Quantity 2000
Panel Mount Feature Without
PCB Mount Retention Without
Primary Product colour Blue
Radiation Hardening No
RoHS Compliant Yes
Row Spacing 0.1inch
Row-to-Row Spacing .1
Series HE13/HE14
Termination IDC
Termination Method to Wire & Cable Insulation Displacement (IDC)
UL Flammability Rating UL 94V-0
Wire Gauge (Max) 26AWG
Wire Gauge (Min) 24AWG
Wire Size 26 – 24
Wire/Cable Type Discrete
