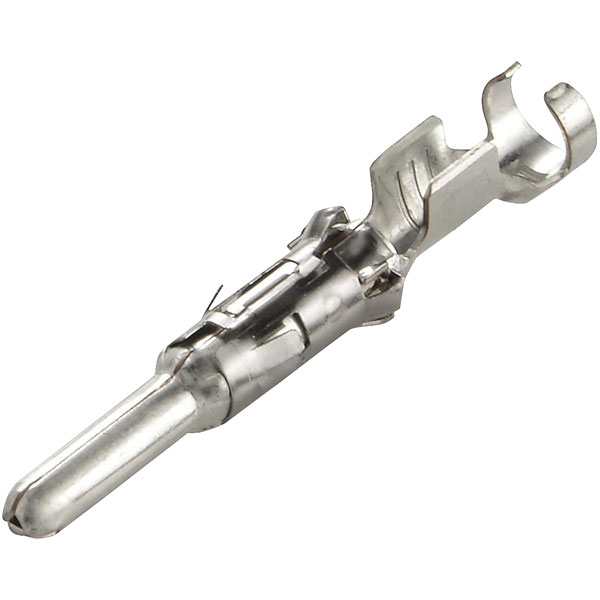

TE 1703013-1 1.5mm Pin Contact 20-17AWG

TE Connectivity
MPN
1703013-1
Order Code
63-1993
Country of Origin
Germany
View Full Product Range (2)
Qty Unit Price (Ex VAT)
3500+ £0.211
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 3500
Available to back orderBack-order availability date - 01/07/2026

These pin contacts from TE Connectivity are from their Single Wire Sealing system.


  • Crimp type: F-Crimp
  • Contact current rating (A): 20
  • Termination method to wire/cable: Crimp
  • Wire size (AWG): 20-17
  • Wire size (mm²): .5 - 1
  • Insulation diameter: 1.2 - 2.1mm [.047 -.082 in ]
  • Terminal shape: Pin/Tab
  • Barrel type: Open Barrel
  • Primary locking feature: Locking Lance
  • Insulation support: Yes
  • Sealed: Yes
  • Seal type: Single Wire Seal (SWS)
  • Termination type: Crimp
  • Terminal transmits: 0 - 24 A (Low Power)
  • Wire size search (AWG): 17, 18, 19, 20
  • Operating temperature range: -40 to +130 °C [ -40 to +266 °F ]
  • Packaging quantity: 1
  • Mftrs part no. 1703013-1
Type Pin contact
Mounting Type Cable mount
Contact Gender Male
Contact Material Copper Alloy, Copper, COPPER NICKEL SILICON ALLOY
Contact Plating Tin
Contact Type Pin
Depth 4.8mm
Diode type PIN
ELV Compliant
Gender Male
Height 4.8mm
Insulation Diameter 2.1mm
Lead Free Not Applicable
Length 29.8mm
Maximum Operating Temperature 130°C
Minimum Operating Temperature -40°C
Mount Cable
Orientation Straight
Package Quantity 3500
Packaging Tape and Reel
Reach SVHC Compliant Unknown
RoHS Compliant Yes
Sealable Yes (With)
Series 1.5mm System
Shielding Unshielded
Size 1.5mm
Termination Crimp
Wire Gauge (Max) 20AWG
Wire Gauge (Min) 18AWG
Wire/Cable Gauge 17AWG
