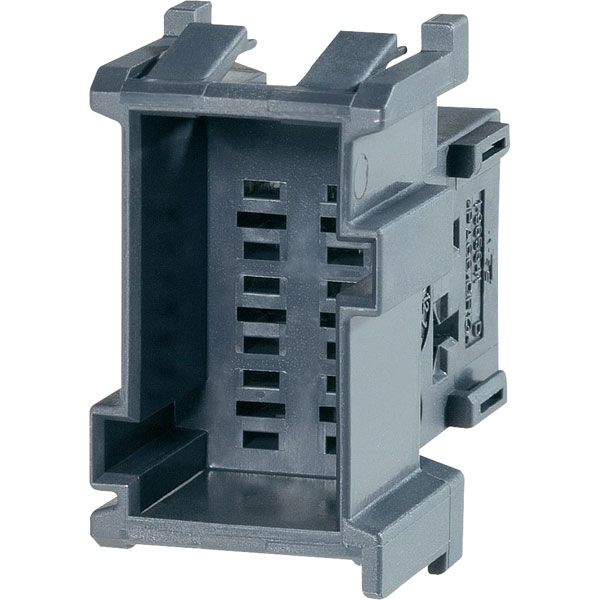

TE Connectivity's Junior Power Timer Plug 1-965641-3 features six unshrouded female connections.
It is designed with robust contacts for high current applications.
The plug ensures reliable performance in automotive and industrial systems.
Ideal for use in environments requiring secure and durable power connections.
- Product type: Terminal Housing
- Connector type: Plug Housing
- Colour: Grey
- Length: 17.5mm (.689 in )
- Width: 2.8mm (.11 in )
- Height: 30.6mm ( 1.205 in )
- Number of positions per row: 3
- Number of rows: 2
- Housing material: PA GF
- Operating voltage (VDC): 28
- Connector system: Wire-to-Wire
- Mating connector lock: Yes
- Polarized: Yes
- Pitch: 5mm (.197 in )
- Body material: PA GF
- Primary locking feature: On the terminal
- Accepts contact style: Tab
- Mating tab width: 2.8mm (.11 in )
- Keyed: Yes
- Cable exit angle: 180°
- Nominal voltage (V): 12, 24
- Operating temperature range: -40 to +120 °C ( -40 to +248 °F )
- Packaging quantity: 1
- Mftrs part no. 1-965641-3
| Type |
Terminal housing |
| Pitch |
5mm |
| Number of Ways |
6 |
| Number of Rows |
2 |
| Circuit Application |
Signal |
| Colour |
Grey |
| Connector System |
Wire-to-Wire |
| Contact Type |
Tab |
| ELV |
Compliant |
| Gender |
Male |
| Height |
1.205inch |
| Housing Colour |
Grey |
| Hybrid Connector |
No |
| Length |
0.689inch |
| Mating Tab Width |
0.11inch |
| Max Operating Temperature |
248°C |
| Min Operating Temperature |
-40°C |
| Mount |
Free Hanging |
| Number of Contacts |
6 |
| Number of Positions |
6 |
| Package Quantity |
1500 |
| Packaging |
Bag |
| Polarized |
Yes |
| RoHS Compliant |
Yes |
| Row Spacing |
0.217inch |
| Sealable |
No (Without) |
| Series |
Junior Power Timer |
| Serviceable |
No |
| Strain Relief |
No (Without) |
| Termination |
Crimp |
| Width |
35.45mm |
