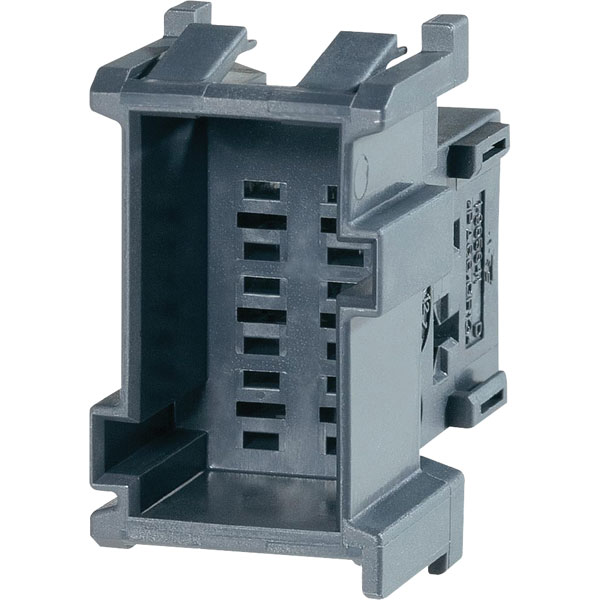

TE Connectivity's 1-965641-1 is a combination line connector featuring a 6-position male shrouded design.
It is known for its robust plastic housing, ensuring reliable electrical connections.
This connector is typically used in automotive and industrial applications.
Its compatibility with various components makes it ideal for manufacturing and assembly processes.
- Product type: Terminal Housing
- Connector type: Plug Housing
- Colour: Blue
- Length: 17.5mm (.689 in )
- Width: 2.8mm (.11 in )
- Height: 30.6mm ( 1.205 in )
- Number of positions per row: 3
- Number of rows: 2
- Housing material: PA GF
- Operating voltage (VDC): 28
- Connector system: Wire-to-Wire
- Mating connector lock: Yes
- Polarized: Yes
- Pitch: 5mm (.197 in )
- Body material: PA GF
- Primary locking feature: On the terminal
- Accepts contact style: Tab
- Mating tab width: 2.8mm (.11 in )
- Keyed: Yes
- Cable exit angle: 180°
- Nominal voltage (V): 12, 24
- Operating temperature range: -40 to +120 °C ( -40 to +248 °F )
- Packaging quantity: 1
- Mftrs part no. 1-965641-1
| Type |
Terminal housing |
| Pitch |
5mm |
| Number of Ways |
6 |
| Number of Rows |
2 |
| Body Material |
PA GF |
| Circuit Application |
Signal |
| Colour |
Blue |
| Connector System |
Wire-to-Wire |
| Contact Material |
Copper Alloy |
| Contact Plating |
Tin |
| Contact Type |
Tab |
| Depth |
23.5mm |
| ELV |
Compliant |
| Gender |
Male |
| Height |
30.6mm ( 1.205 in ) |
| Housing Colour |
Blue |
| Housing Material |
PA GF |
| Hybrid Connector |
No |
| Lead Free |
Not Applicable |
| Length |
17.5mm (.689 in ) |
| Mating Tab Width |
0.11inch |
| Max Operating Temperature |
248°C |
| Min Operating Temperature |
-40°C |
| Mount |
Free Hanging, Panel |
| Number of Contacts |
6 |
| Number of Positions |
6 |
| Orientation |
Straight |
| Package Quantity |
1500 |
| Packaging |
Bag |
| Polarized |
Yes |
| Primary Type |
Rectangular |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Row Spacing |
0.217inch |
| Sealable |
No (Without) |
| Series |
Junior Power Timer |
| Serviceable |
No |
| Strain Relief |
No (Without) |
| Termination |
Crimp |
| Width |
35.45mm |
| Wire/Cable Gauge |
13AWG |
