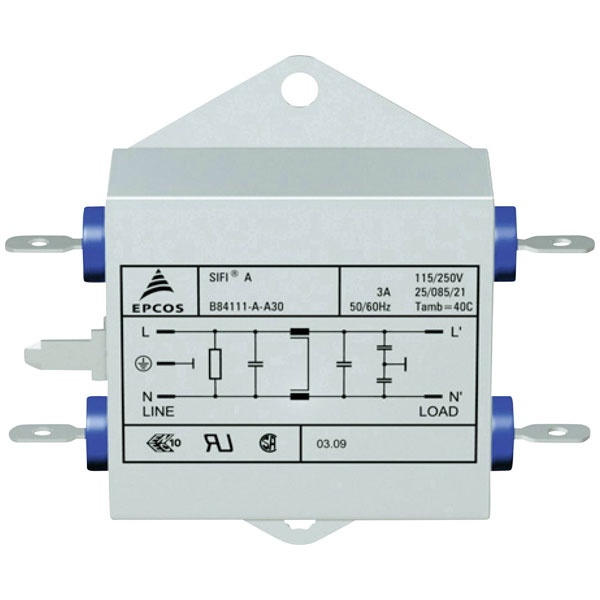

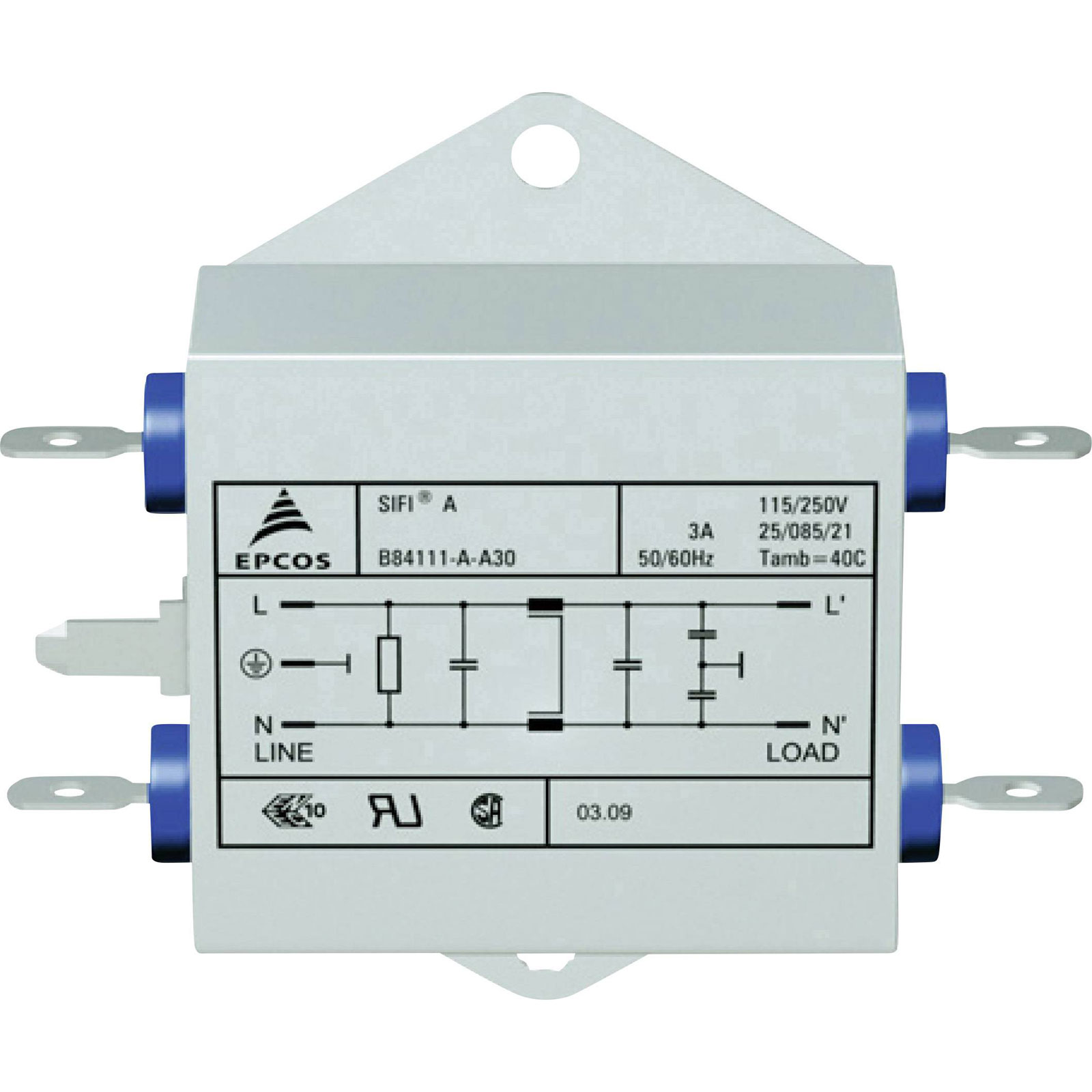

TDK B84111AA30 EMI filter flame retardant 250V AC 3A 1.5mH 70x76.5x22.3mm

TDK B84111AA30 is a reliable EMI filter designed for applications requiring flame retardancy and high performance. The component, alternatively known as 501874 – TDK B84111AA30, is capable of operating at 250V AC and a current of up to 3A, with an inductance of 1.5mH. Measuring 70x76.5x22.3mm, it fits well into various electronic assemblies where space constraints are a concern. This EMI filter is particularly suited for industrial and consumer electronics where electromagnetic interference needs to be minimised, providing effective filtering performance while adhering to stringent safety standards. Its flame retardant properties make it ideal for usage in environments where fire safety is a critical consideration.

Type	EMI filter
Current Rating	3A
Leakage Current	0.5mA
Connection	Type C CEE 7/16 plug 6.3mm
Content	1
Dimensions	(L x W x H) 70 x 76.5 x 22.3 mm
Height	22.3mm
Inductance (L)	1.5mH
Length	70mm
Mounting Type	Structure
Nominal Voltage	250V AC
Nominal voltage (details)	115/250 V/50 - 60 Hz
Width	76.5mm
