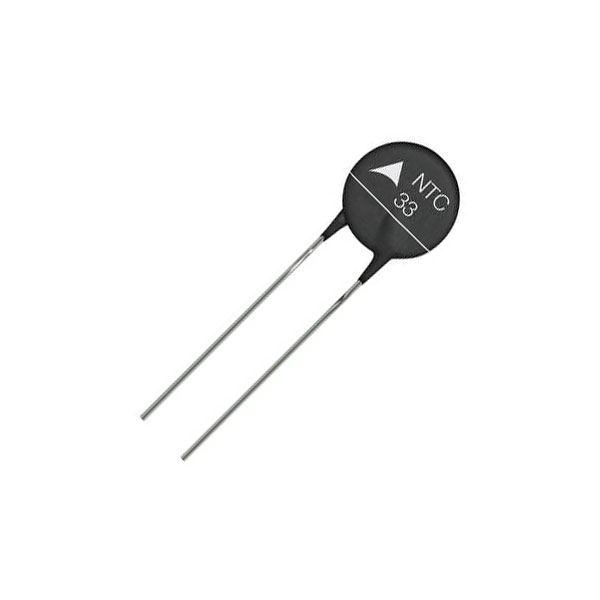

TDK B57236S0250M000 NTC Temperature Monitor 25 Ω Radial Lead

The TDK B57236S0250M000 is an NTC thermistor that functions as an inrush current limiter with a resistance of 25 ohms. This radial lead temperature sensor is ideal for protecting electronic circuits from current surges. Typical applications include use in power supplies and various temperature monitoring systems.

Type	Temperature monitor (inrush current limiter)
Mounting Type	Through-hole mounting
(Ø)	11.5mm
Accuracy	20%
Connector	Solder pins
Depth	6mm
Dim	(Ø x D) 11.5 mm x 6 mm
Enclosure	S236
Misc Attribute 2	Radial lead
Model	NTC
Resistance	25O
Resistance reference	+25°C
Switching current (max.)	2.5A
Voltage Range	N/A
