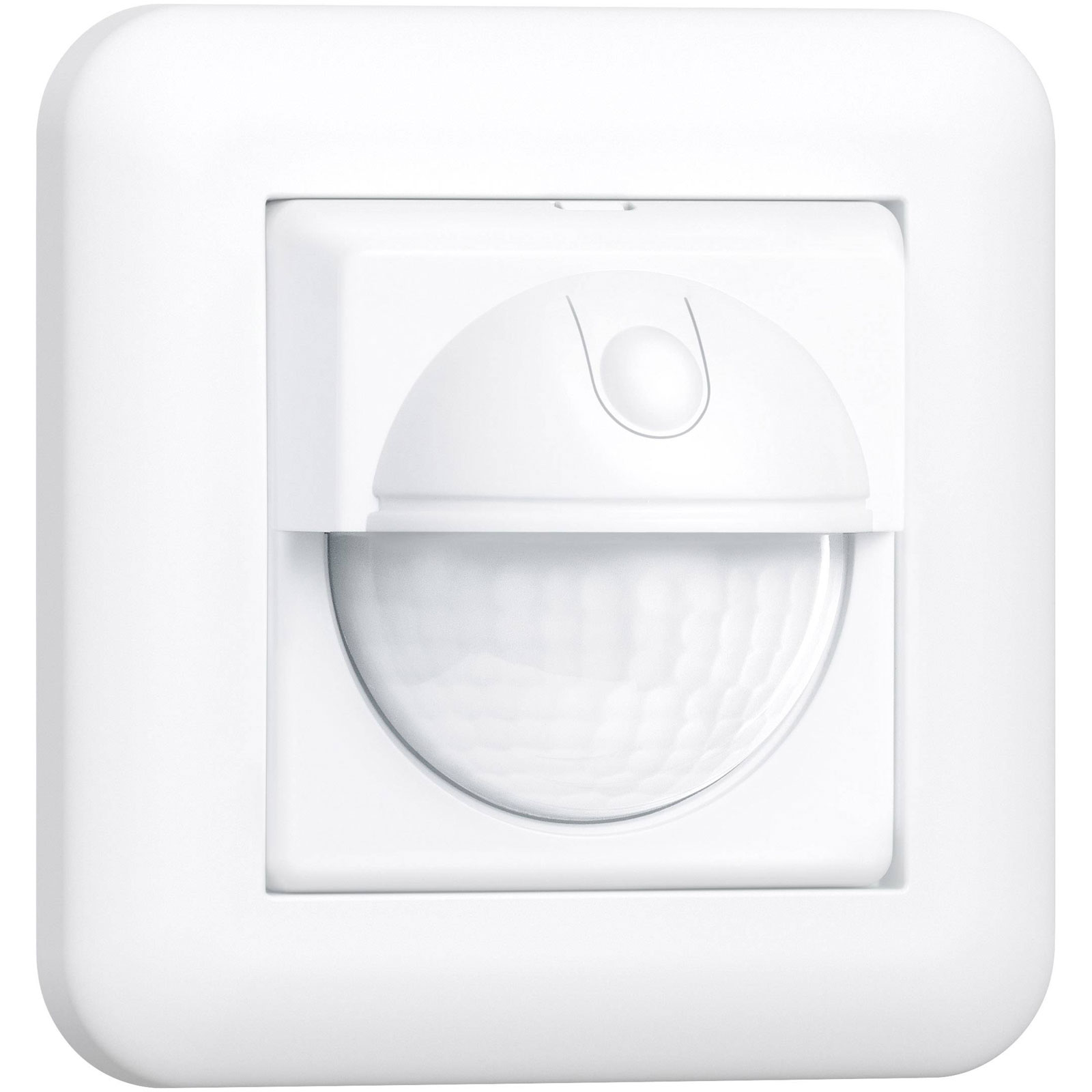

Steinel 55790 IR 180 UP PIR Motion Detector 180° 8m Range Manual Switch

The Steinel 055790 flush mount PIR motion detector features a 180° detection range and has a white finish. It is suitable for indoor use with an IP20 rating, making it ideal for automated lighting in hallways or offices. This compact sensor from Steinel enhances energy efficiency by activating lights only when movement is detected.

Type	PIR motion detector
Contact Type	Relay
Detection Angle	180°
Dim	(W x H) 80 mm x 80 mm
Factory colour	White
Height	80mm
IP Rating	IP20
Max. Range	8m
Mounting Type	Flush mount
Operating Voltage	230V
Similar RAL	9010
Switching Capacity	200W
Switching capacity (light bulbs)	200W
Switching capacity (light tubes)	500VA
Time settings	5 sec. to 30min
Twilight settings	2 - 2000lx
Used at	Indoors
Width	80mm
