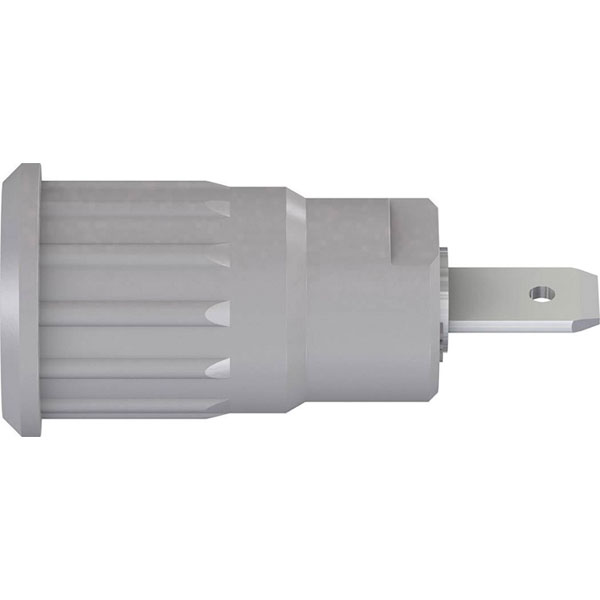

Stäubli 497079-28 SEB4-F/N safety jack socket built-in grey insulated brass

Staubli
Order Code:

00-0434

Brand: Staubli MPN: 49.7079-28 EAN-13: 2050005401461
Qty Unit Price (Ex VAT)
5+ £1.12
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 4 weeks

4mm rigid socket in insulated body, with 4.8mm male spade connector. Suitable for accepting spring-loaded 4mm plugs with rigid insulating sleeve. Push-fit mounting into cutout holes of plates or housings made of plastic, metal etc.
Type Socket, built-in
Contact Plating Nickel plated
Colour Grey
Cable Diameter 14.5mm
Connection Type C CEE 7/16 plug 4.8 mm
Dim (Ø x L) 14.5 mm x 31.5 mm
Insulation Material Insulated
Length 31.5mm
Nominal Current 24A
Nominal current - rounded value 24A
Nominal Voltage 1000V
Width 4mm
