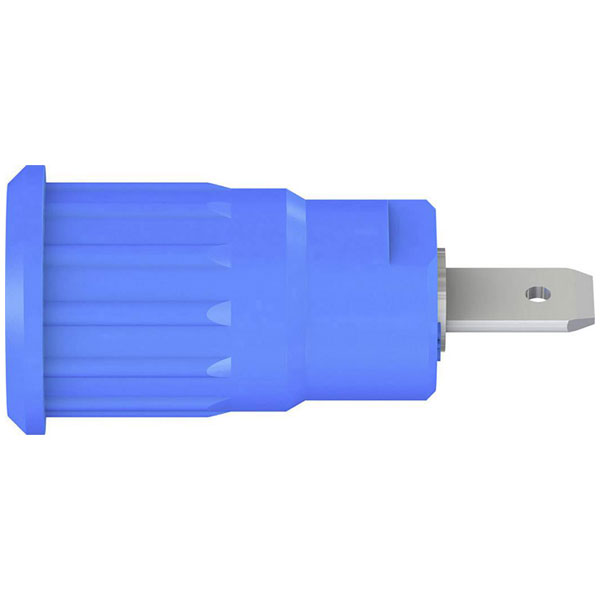

Stäubli 497079-23 Safety jack socket blue Ø 4mm brass rotating part

Staubli
Order Code:

00-0418

Brand: Staubli MPN: 49.7079-23 EAN-13: 2050005401447

Discontinued


4mm rigid socket in insulated body, with 4.8mm male spade connector. Suitable for accepting spring-loaded 4mm plugs with rigid insulating sleeve. Push-fit mounting into cutout holes of plates or housings made of plastic, metal etc.
Type Socket
(Ø) 14.5mm
Connection Type C CEE 7/16 plug 4.8 mm
Connector type Socket, built-in
Contact material Nickel plated
Dim (Ø x L) 14.5 mm x 31.5 mm
Factory colour Blue
Insulation type Insulated
Jack diameter 4mm
Length 31.5mm
Misc Attribute SEB4-F/N
Nominal current 24A
Nominal current - rounded value 24A
Nominal voltage 1000V
RoHS-compliant Yes
