Stäubli 233130-22 SEB4-R built-in safety jack red 4 mm 1 pc brass part

Stäubli 233130-22 SEB4-R built-in safety jack red 4 mm 1 pc brass part

Staubli
Order Code:

00-0336

Brand: Staubli MPN: 23.3130-22 EAN-13: 2050000577161

Discontinued

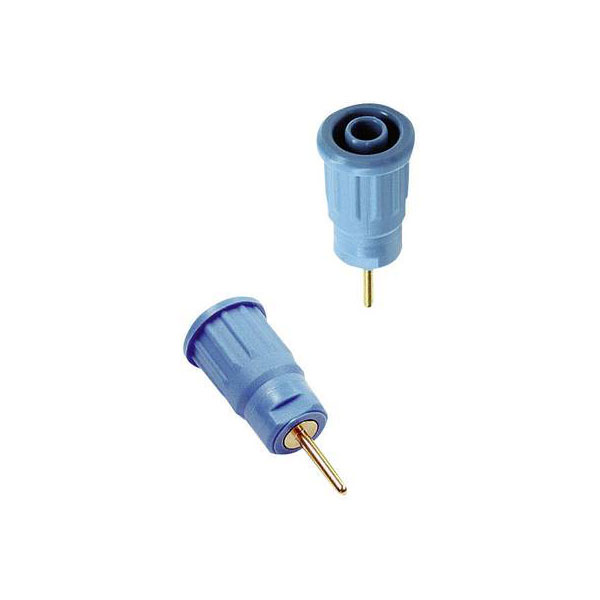

Insulated, rigid 4mm socket connector, with gold-plated contacts and a 1.9mm solder pin. Suitable for accepting spring-loaded 4mm plugs with rigid insulating sleeve. Socket made from brass. Push-fit mounting into cutout holes in plates or housings made of plastic, metal etc.
Type Socket, built-in
Contact Plating Gold plated
Colour Red
Cable Diameter 14.5mm
Dim (Ø x L) 14.5 mm x 35.5 mm
Insulation Material Insulated
Length 35.5mm
Material Gold-plated
Nominal Current 24A
Nominal current - rounded value 24A
Nominal Voltage 1000V
Width 4mm
