Stäubli 233130-21 SEB4-R safety jack socket built-in blk insulated 4mm

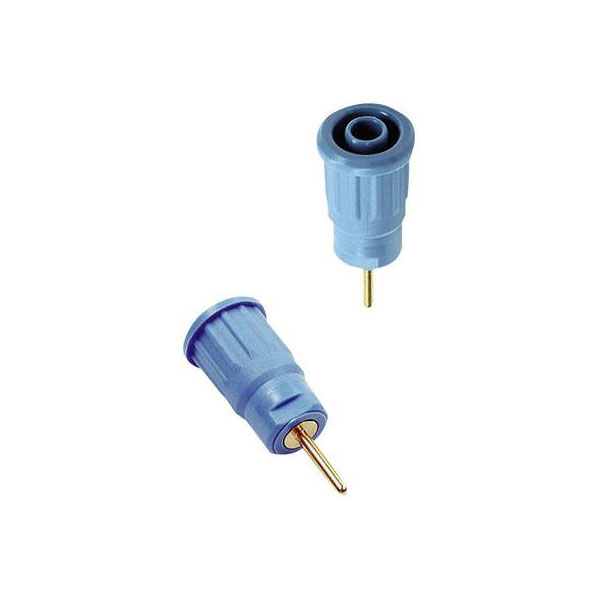

Insulated, rigid 4mm socket connector, with gold-plated contacts and a 1.9mm solder pin. Suitable for accepting spring-loaded 4mm plugs with rigid insulating sleeve. Socket made from brass. Push-fit mounting into cutout holes in plates or housings made of plastic, metal etc.

Connector Type	4mm Socket
Plug / Socket	Socket
Mounting Direction	Straight (Panel)
Insulated	Yes
Colour	Black
Cable Diameter	14.5mm
Contact Plating	Gold plated
Dim	(Ø x L) 14.5 mm x 35.5 mm
Insulation Material	Insulated
Length	35.5mm
Material	Gold-plated
Nominal Current	24A
Nominal current - rounded value	24A
Nominal Voltage	1000V
Type	Socket, built-in
Width	4mm
