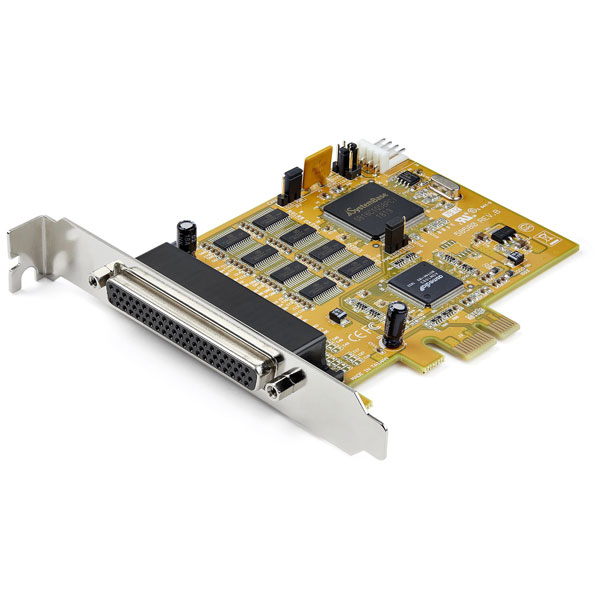

Add eight RS-232 capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card - Full Profile Serial Card
Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.
Connect your Peripherals with 8 Serial Ports
The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.
Windows Only
This PCI Express card is only compatible with Windows and Windows server.
The StarTech.com Advantage
- 8 PORT SERIAL CARD: Serial controller card w/ 16C15 UART based on the Systembase SB16C158PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer
- Upgraded version of our popular card PEX8S952
- OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared
- 18"/48cm DB62 to 8x DB9 breakout cable incl
- Hex nuts incl for opt screw/nut DB9 interface
- WINDOWS ONLY: Full profile PCI-e 1x card and fully compliant w/ PCI Express Base Specifications, Revision 1.a/1.1
- Supports Windows (incl. XP and up) and Windows Server (23 and up)
- For standard profile desktop/servers
- VERSATILE APPLICATIONS: PCI Express RS232 serial adapter card for within point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope
- TECH SPECS: System Base SB16C158PCI Chipset
- 16C15 UART compatible
- 8x 9-Pin D-Sub Ports
- Max Baud 921.6Kbps per port
- 256 Byte FIFO
- Supports Windows Only
- None, Even, or Odd Parity Modes
- 5/6/7/8 Data Bits
- RS-232 Protocol
- Standard Profile Bracket
