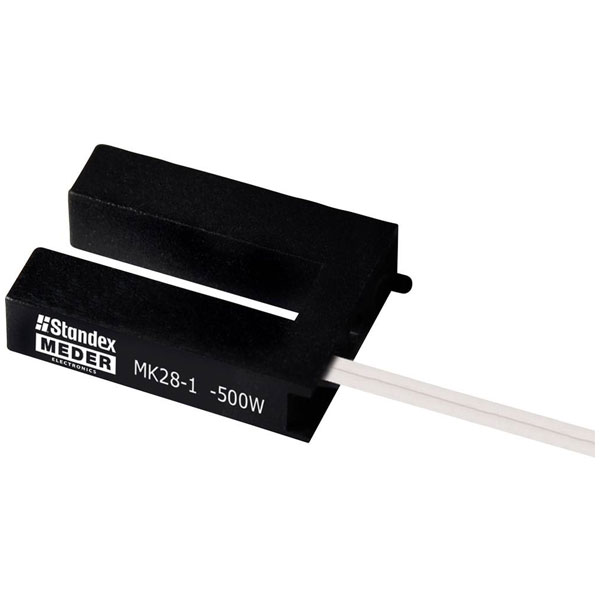

StandexMeder 9283901054 MK28-1C-500W Reed Switch 175V DC/AC 1A 10W

The StandexMeder Electronics MK28-1C-500W is a reed switch capable of handling 175 V DC or 175 V AC with a maximum current of 1 A and power rating of 10 W. This product features a single change-over contact, making it suitable for applications requiring precise switching. Typical uses for this reed switch include door contacts and other sensing applications where reliability and efficiency are crucial.

Type	Reed switch
Switching Current	1A
Switching Power	10W
Mounting Type	Screw-mount
Cable Length	0.50m
Connection	Open end cable
Contact Material	1 change-over
Dim	(L x W x H) 25.4 x 19.1 x 6.4 mm
Enclosure material	Nylon
Height	6.4mm
Length	25.4mm
Max. switching capacity	10W
Maximum Temperature	105°C
Min. temperature	-40°C
Misc Attribute	MK28-1C-500W
Water activity	15 - 20
Water activity (max.)	20
Water activity (min.)	15
Width	19.1mm
