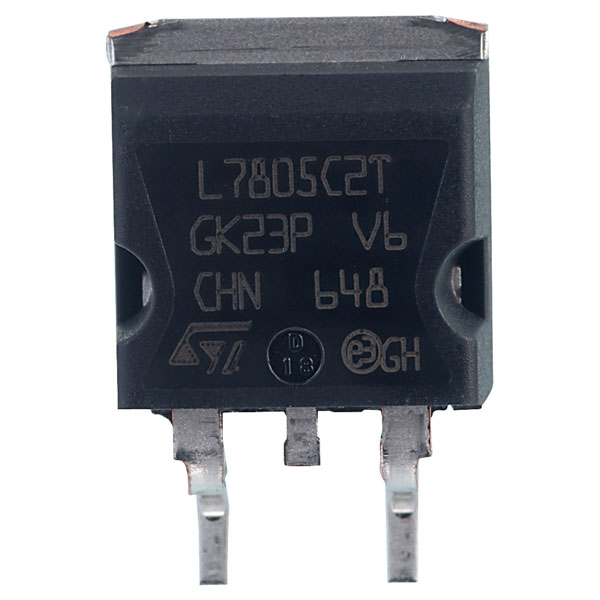

ST L7805CD2T-TR Voltage Regulator 5V 1A D2PAK

ST
Order Code:

47-3542

Brand: ST MPN: L7805CD2T-TR
Qty Unit Price (Ex VAT)
5+ £0.458
25+ £0.401
100+ £0.350
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 5
2,015 in stock, despatched same dayAdditional quantity lead time 14 months

This device from ST is the surface mount version of the successful 7800 series of fixed voltage regulators. Employing internal current limiting, thermal shut-down and safe area protection this device can, with adequate thermal management, deliver over 1A output current.

This regulator can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. In addition, although designed primarily as a fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents.


  • Output current to 1A
  • 5V Output voltage
  • Thermal overload protection
  • Short circuit protection
  • Output transition SOA protection
  • Housed in a D²PAK package
Type Fixed positive
Dropout Voltage 2V
Number of Outputs Single
Operating Temperature Range 0 to +150°C
Output Current 1A
Output Voltage 5V
Package D2-PAK
Supply Voltage Max 35V
