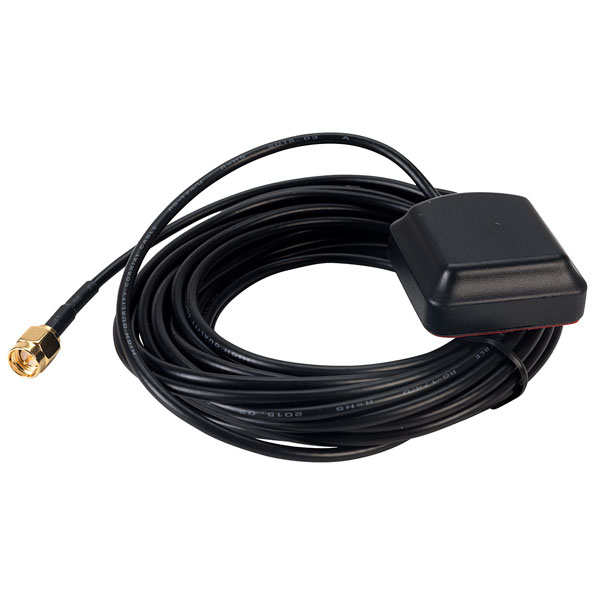

The Siretta Alpha 4A is an extremely compact, self-adhesive mounting, IP67 rated, GPS antenna. Its 37 x 33mm footprint makes it able to be fitted into a wide range of locations, and with a height of only 13mm it provides an unobtrusive profile.
The Alpha 4A is fitted with a strong self-adhesive base that provides a firm fixing on most flat surfaces, including: metal, glass, wood and plastic. It can be used indoors or outdoors where its IP67 rating makes it well suited to in harsh environments. GPS applications include: vehicle / fleet / asset tracking, mobile applications or general positioning purposes.
The antenna has a centre frequency of 1575.42MHz for GPS compatibility and a built-in Low Noise Amplifier (LNA) providing 26dB gain for superior GPS performance.
- GPS active antenna
- Self-adhesive mounting
- SMA male plug
- RG174 cable
- Cable length 5m
- IP67 rating
- Siretta type ALPHA4A/5M/SMAM/S/S/26
Mounting |
Adhesive |
GPRS/2G |
No |
UMTS/3G |
No |
LTE/4G |
No |
Combined |
No |
GPS |
Yes |
ISM |
No |
2.4GHz |
No |
WiFi |
No |
Bluetooth |
No |
Antenna Construction |
Compact |
Cable Type |
RG174 |
Connector |
SMA male |
IP Rating |
IP67 |
