Signal Construct SMFL30422 LED Indicator Light Blue 12V DC 14V AC 95mcd

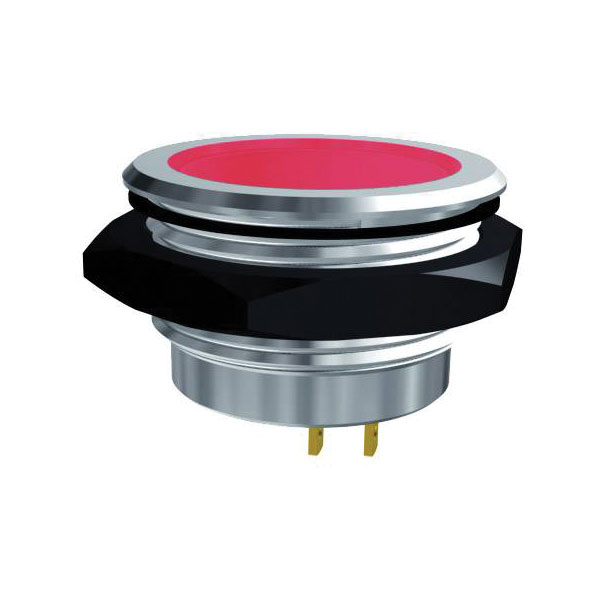

Image Representative of Range

Signal Construct SMFL30422 LED Indicator Light Blue 12V DC 14V AC 95mcd

Signal Construct
Standard range
Order Code:

07-1086

Brand: Signal Construct MPN: SMFL30422
Qty Unit Price (Ex VAT)
1+ £13.15
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
13 in stock, despatched in 4 working days

Signal Construct's SMFL30422 is a blue LED indicator light operating at 12 V DC or 14 V AC and emits a brightness of 95 mcd. This LED pilot light is suitable for applications where visual signalling is required, such as control panels and equipment status indicators. It offers reliable performance for diverse industrial and electronic use cases.
Type LED indicator light
(Ø) 34mm
Case colour Silver
Connection Type C CEE 7/16 plug 2.8 mm
Dim (Ø x H) 34 mm x 19 mm
Energy efficiency rating n.rel.
Factory colour Blue
Front panel thickness 14mm
Height 19mm
IP rating IP67
LED features splashproof
Lifespan 60000h
Light intensity I(V) 95mcd
Material Brass
Material properties matt chrome plating
Max. temperature +75°C
Min. temperature -30°C
Misc Attribute SMFL 30422
Mounting Type Screw and union
Operating current 32mA
Operating voltage 12, 14 V DC, V AC (max)
Radiation angle 160°
Recess diameter 30mm
RoHS-compliant Yes
