Signal Construct SMFL22114 LED Indicator Light Yellow 24V DC

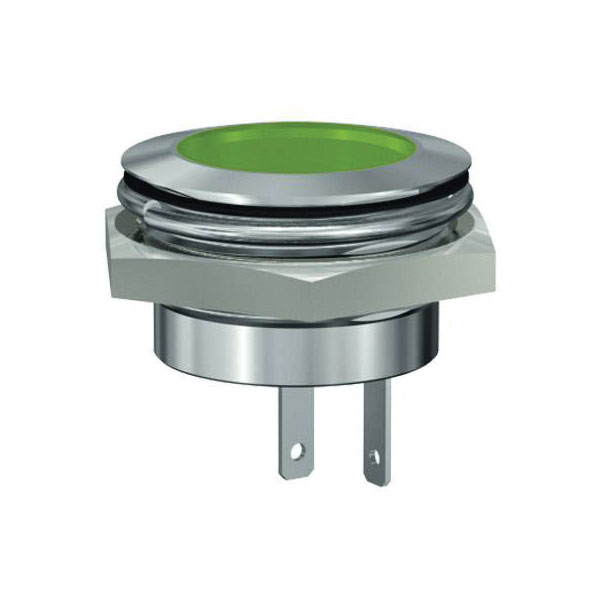

Image Representative of Range

Signal Construct SMFL22114 LED Indicator Light Yellow 24V DC

Signal Construct
Standard range
Order Code:

07-1076

Brand: Signal Construct MPN: SMFL22114
Qty Unit Price (Ex VAT)
1+ £11.01
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
28 in stock, despatched in 4 working days

Signal Construct SMFL22114 is a yellow LED indicator light designed for 24 V DC applications. It features a robust construction suitable for both industrial and consumer electronics. Commonly used as a visual signal in control panels and machinery, it provides clear status indication.
Type LED indicator light
(Ø) 25mm
Case colour Silver
Connection Type C CEE 7/16 plug 2.8 mm
Dim (Ø x H) 25 mm x 12 mm
Energy efficiency rating n.rel.
Factory colour Yellow
Front panel thickness 9.70mm
Height 12mm
IP rating IP67
LED features splashproof
Lifespan 60000h
Material Brass
Material properties matt chrome plating
Max. operating voltage 28V DC
Max. temperature +75°C
Min. operating voltage 24V DC
Min. temperature -30°C
Misc Attribute SMFL 22114
Mounting Type Screw and union
Operating current 9mA
Recess diameter 22mm
RoHS-compliant Yes
