Signal Construct MultiLook 9.7mm LED Panel Indicators with Full-Wave Rectifier

Signal Construct Brand: Signal Construct

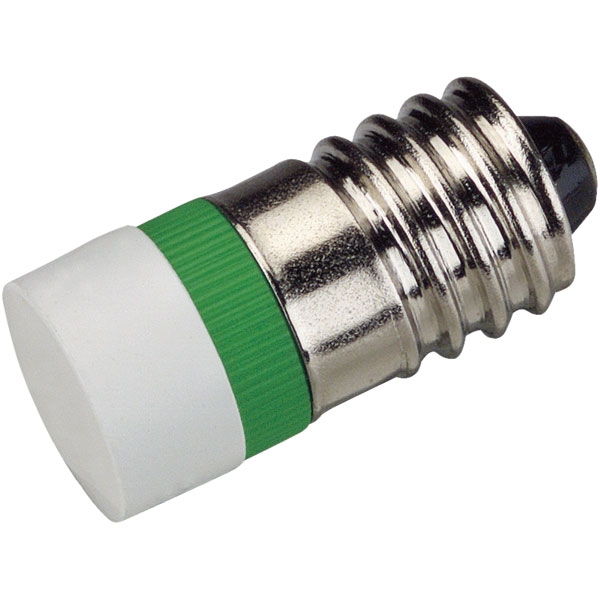

A range of 9.7mm LED panel indicators that are of the screw-in type. The design of these solid state lamps, with their special combination of reflector and concave lens, produces a device that has a radiation pattern similar to multiple-die LEDs. The LED indicator also features an integrated resistor with a full-wave rectifier so that the LED can work with both AC and DC.

  • Base E10
  • Viewing angle 160°
  • –40°C to +70°C
  • Dimensions Ø9.7 x 22mm
  • Operational life 50,000 hours
Description Image Product Buy Pricing (Ex VAT) Voltage Current Colour Intensity Size
Signal Construct MWCE22029 Multi-Look LED Panel Indicator Red 12V E10
Signal Construct MWCE22029 Multi-Look LED Panel Indicator Red 12V E10
Standard range
Order code: 50-0541
MPN: MWCE22029

1 in stock, despatched in 4 working days
2+ £2.62
Price per unit Ex VAT 		12V 15mA Red 160mcd 9.8mm
Signal Construct MWCE22629 Multi-Look LED Panel Indicator White 12V E10
Signal Construct MWCE22629 Multi-Look LED Panel Indicator White 12V E10
Standard range
Order code: 50-0540
MPN: MWCE22629

19 in stock, despatched in 4 working days
1+ £9.86
5+ £9.33
10+ £7.95
Price per unit Ex VAT 		12V 13mA White 1200mcd 9.7mm
Signal Construct MWCE22669 Multi-Look LED Panel Indicator White 60V E10
Signal Construct MWCE22669 Multi-Look LED Panel Indicator White 60V E10
Standard range
Order code: 50-0538
MPN: MWCE22669

63 in stock, despatched in 4 working days
1+ £4.47
Price per unit Ex VAT 		60V 15.2mA White 1200mcd 9.7mm
OrderColourWavelengthLum. int. (mcd)IF max.VF typ.
code(nm)@ IF (20mA)(mA)(V AC/DC)
50-0541Red6281601512
50-0549Yellow5881501924
50-0540Whitex = 0.25 to 0.375 *12001312
y = 0.318 to 0.361 *
50-0538Whitex = 0.25 to 0.375 *120015.260
y = 0.31 to 0.36 *
* Chromaticity coordinates
