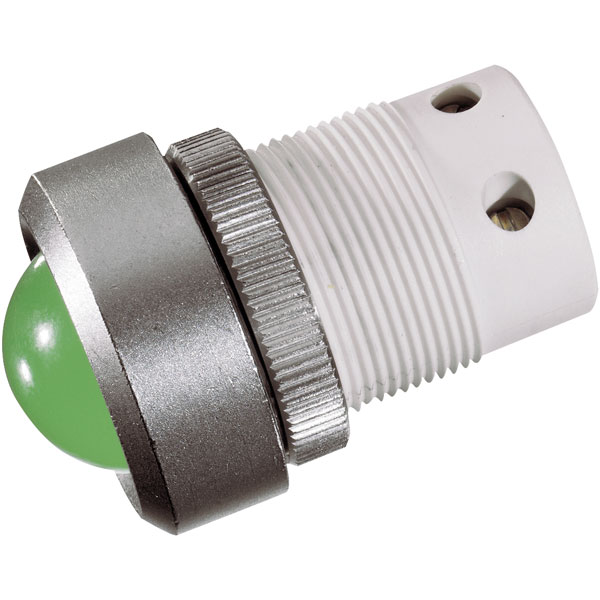

Signal Construct LED Recessed Panel Indicators 22mm IP67

Signal Construct Brand: Signal Construct

These LED indicators are panel mounting devices with screw fastening that have an IP67 protection rating, making them suitable for both indoor and outdoor use. The lamps are 230V AC powered and have a frosted matt finish that enhances on/off contrast.

  • Protection type IP67
  • Internal reflector
  • Includes milled nut and O ring
  • Life time 50,000 hours
  • Connection by screw terminal for wire up to 1.5mm²
  • M22 body for mounting in a ø22 +0.2mm cut out
Description Image Product Buy Pricing (Ex VAT) Brightness (mcd) Colour Voltage Current Bezel Size View Angle
Signal Construct SMTD22038 22mm LED Indicator Lamp Red 230VAC
Signal Construct SMTD22038 22mm LED Indicator Lamp Red 230VAC
Standard range
Order code: 50-2249
MPN: SMTD22038

11 in stock, despatched in 4 working days
1+ £11.82
Price per unit Ex VAT 		250mcd Red 230V 15mA Prominent 22mm 160°
Signal Construct SMTD22738 22mm LED Indicator Lamp Ultra Green 230VAC
Signal Construct SMTD22738 22mm LED Indicator Lamp Ultra Green 230VAC
Standard range
Order code: 50-2248
MPN: SMTD22738

16 in stock, despatched in 4 working days
1+ £13.54
Price per unit Ex VAT 		700mcd Green 230V 15mA Prominent 22mm 160°
ColourLum. int. (mcd)LuminousVFIFPowerViewingOperating
@ IF (20mA)flux (lm)(V AC)(mA)(mW)angletemperature
Red250710230153.45160°-40°C to +70°C
Ultra green7002.0230153.45160°-40°C to +70°C
