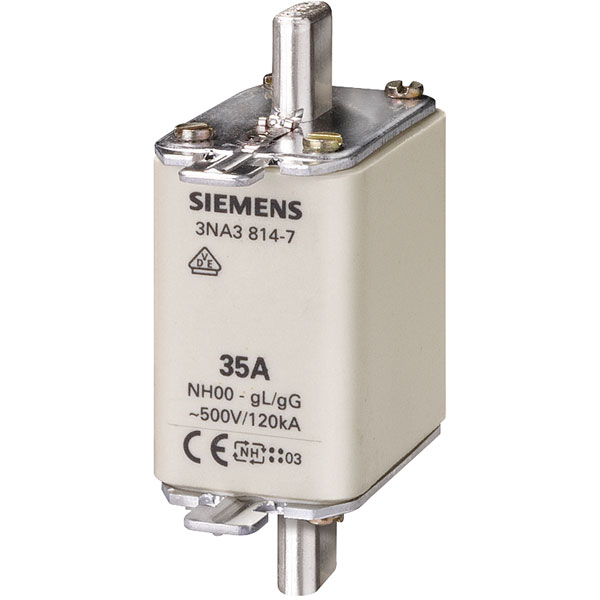

Siemens Sentron NH Type, LV HRC Fuse Link GL/GG/ Non-Insulated Grip, Size 00

Siemens Brand: Siemens

A wide range of Siemens LV HRC Fuse Links (NH Type) that are used for installation systems in non-residential, commercial and industrial buildings as well as in switchgear assemblies of power utilities. They therefore protect essential building parts and systems.

LV HRC fuse systems (NH type) are fuse systems designed for operation by experts. The components and auxiliary equipment are designed in such a way as to ensure the safe replacement of LV HRC fuse systems or isolation of systems. This range is supplied in size 00.

  • Clear and visible conductor connection that can be easily checked
  • Silver-plated Lyra contact provides a large contact area for the pin of the LV HRC fuse link
  • Non insulated grip lugs
  • Front indicator
  • Mounting position: Any, preferably vertical
  • Blade length: 80mm
  • Protection class: IP20
  • Operating class: gG
  • Temperature range: -20°C to 50°C
  • Size 000
  • Supplied in 500V AC/ 250DC
  • Available in 35, 50, 63, 80, 100, 125 and 160A options
3 items.
Description Image Product Buy Pricing (Ex VAT) Type Current Rating Colour Compliance certificates Country of origin Maximum Current Package depth Package height Package weight Operating class Power loss at rated current Product colour Power Supply Type Rated current Sustainability compliance Voltage Fuse construction type according to IEC 60269 Insulated metal gripping lugs (IMGL) Nominal Voltage Package width
Siemens 3NA38227 NH-INSURANCE investment 500 V Size 00 63 A
Siemens 3NA38227 NH-INSURANCE investment 500 V Size 00 63 A
Standard range
Order code: 55-7994
MPN: 3NA38227

28 in stock, despatched in 4 working days
1+ £13.88
Price per unit Ex VAT 		Insurance 63A Copper REACH, WEEE Greece 63 A 95mm 67mm gG 4.6W AC/DC 63A Yes 500 VAC, 250 DVC N/A false 500V 83mm
Siemens 3NA3832 NH Safety fuse 500 V Size 00 125 A
Siemens 3NA3832 NH Safety fuse 500 V Size 00 125 A
Extended range
Order code: 55-7997
MPN: 3NA3832

Available to back orderBack order, lead time 3 weeks
1+ £12.98
Price per unit Ex VAT 		Safety fuse 125A Yellow 67mm 95mm 203 g 8.9W Multicolour 125A N/A false 500V 83mm
Siemens 3NA3836 NH Safety fuse 500 V Size 00 160 A
Siemens 3NA3836 NH Safety fuse 500 V Size 00 160 A
Standard range
Order code: 55-7998
MPN: 3NA3836

25 in stock, despatched in 4 working days
1+ £15.07
Price per unit Ex VAT 		Safety fuse 160A Copper 67mm 95mm 205 g 10.5W Multicolour 160A N/A false 500V 83mm
Mftrs. Part noCurrentDissipation (W)MeltingBreaking @ 230VOrder code
3NA3822-763A4.6W7700A²s14200A²s55-7994
3NA3832125A8.9W36000A²s70000A²s55-7997
3NA3836160A11.3W58000A²s120000A²s55-7998
