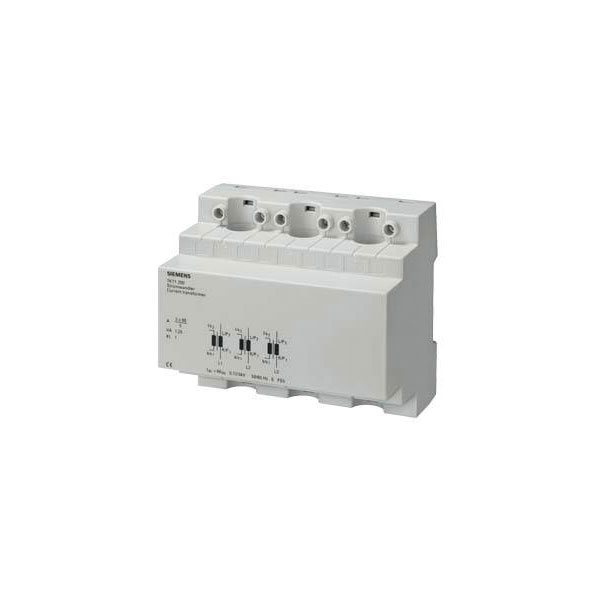

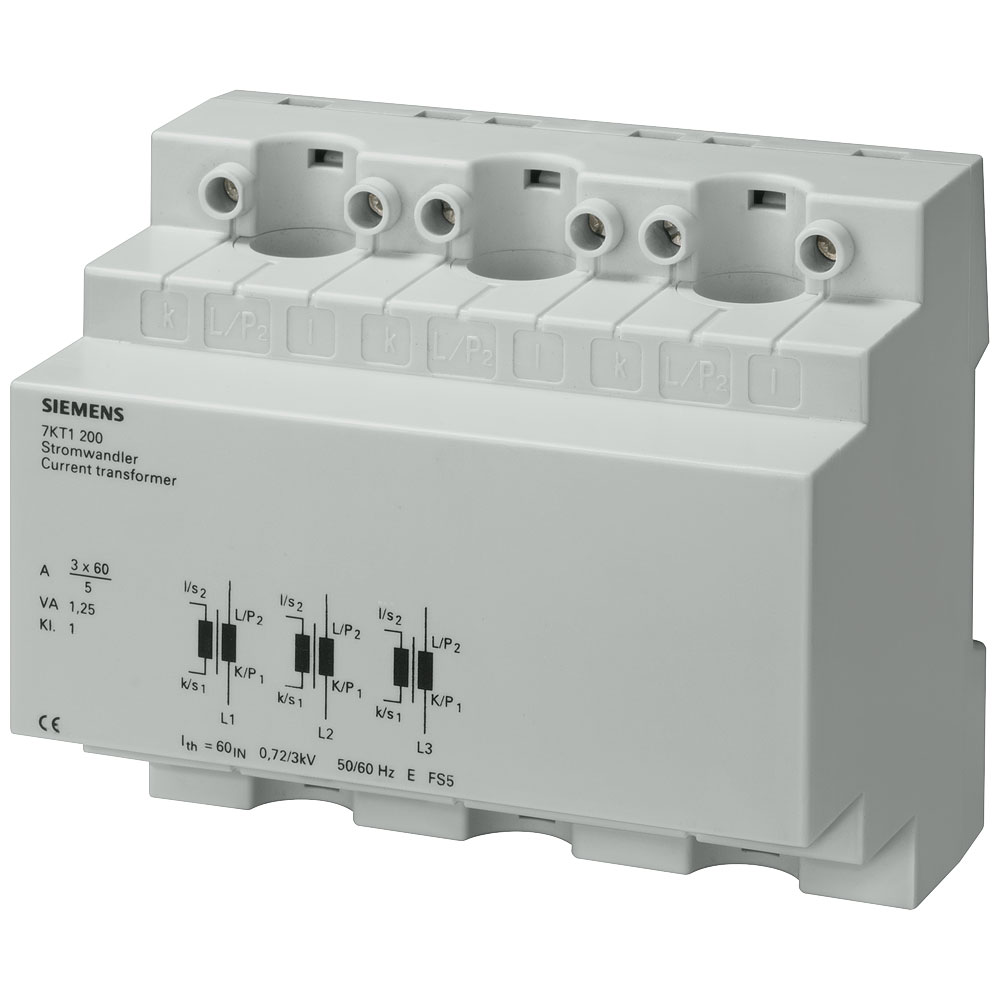

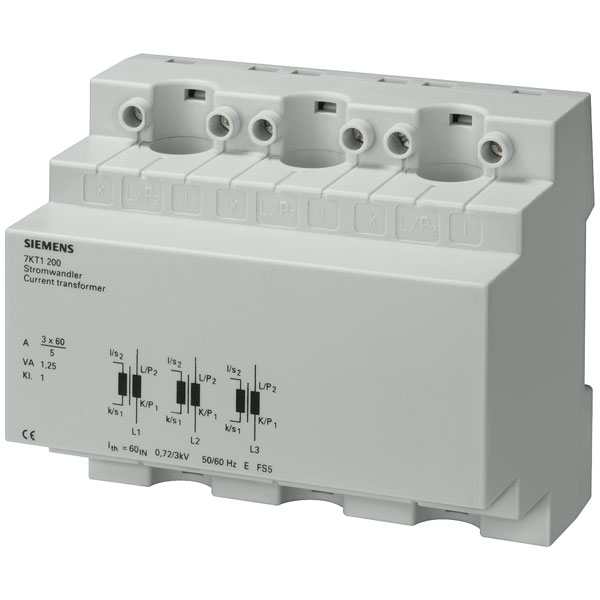

Siemens 7KT1201 3-phase transformer 100A-5A 13mm feed-through

The Siemens 7KT1201 is a 3-phase current transformer designed for applications with a primary current of 100 A and a secondary current of 5 A. It features a line feed-through diameter of 13 mm and is suitable for screw-fit installation. This current transformer is ideal for monitoring and measuring electrical currents in industrial and commercial settings.

Type	3-phase current transformer
Accuracy Class	1
Calibrated	N/A
Colour	Grey
Dim	(L x W x H) 64 x 105 x 90 mm
Fitting type	Screw-fit
Height	90mm
Height opening	N/A
Length	64mm
Line feed-through diameter	13mm
Model	Through-feed current converter
Number of primary inputs	1
Opening diameter	13.0mm
Overcurrent limiting factor	FS 5
Package depth	70mm
Package height	100mm
Package width	110mm
Power	2.5VA
Power Consumption	N/A
Primary Current	100A
Rated primary current	100A
Rated secondary apparent power	2.5VA
Rated secondary current	5A
Secondary connection	N/A
Secondary current	5A
Snap mounting	TRUE
Weight	541g
Width	105mm
Width opening	N/A
With contact protection	FALSE
With copper rail	FALSE
