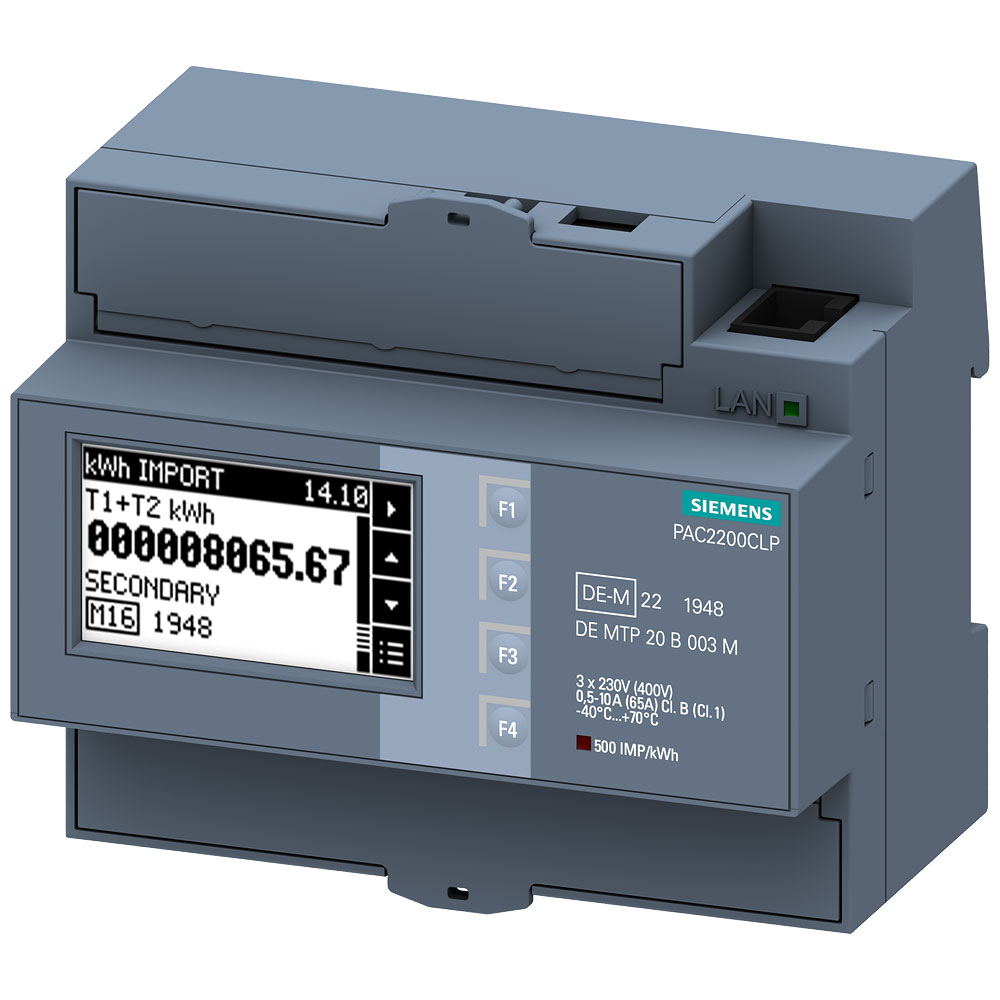

Siemens 7KM22002EA401JB1 SENTRON meter 3-phase 65A LAN Modbus-TCP LCD

The Siemens 7KM2200-2EA40-1JB1 is an energy consumption meter designed for accurate measurement and logging of electrical usage. With features like real-time data monitoring and connectivity options for integration into energy management systems, it offers precise tracking of power consumption. This device is typically used in industrial and commercial settings to optimise energy efficiency and manage costs.

Type	Energy consumption meter
Accuracy Class	N/A
Approval	N/A
Calibrated	true
Degree of protection (IP)	IP40
Degree of protection (NEMA)	N/A
Depth	N/A
Dim	(L x W x H) 71 x 108 x 97 mm
EEC40 signature	N/A
Energy type	Effecive and reactive power
Escapement mechanism	true
Frequency	N/A
Height	97mm
IP Rating	IP40
Length	71mm
Max. current (Imax)	65A
Measurement type load profile	true
MID-approved	No
Misc Attribute	7KM2200-2EA40-1JB1
Model	Direct measurement
Mounting method	N/A
Nominal current (In)	65A
Nominal voltage (Un) L-L	3 - 480V
Nominal voltage (Un) N-L	3 - 276V
Number of positions total (counter)	12
Pole type	Three conductor/four conductor
Power Consumption	N/A
Pulse output	Electrical
Pulse rate	N/A
Pulse type	S0
Suitable For	Purchase/supply
Tariff control	N/A
Tariff type	Two-tariff
Type of indication	Digital
Type of interface	N/A
Type of meter	Electronic
Weight	310
Width	108mm
Width in number of modular spacings	6
With lock code	true
