Siemens 7KM22002EA301EA1 SIRIUS ACT pushbutton 22mm round blue 1NO+1NC

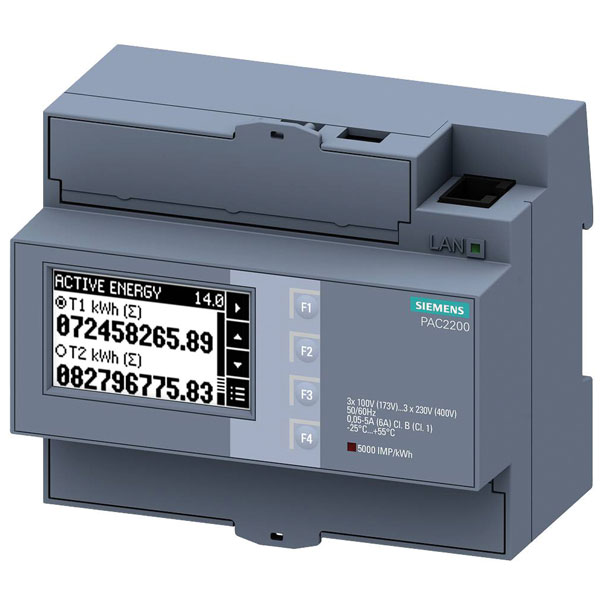

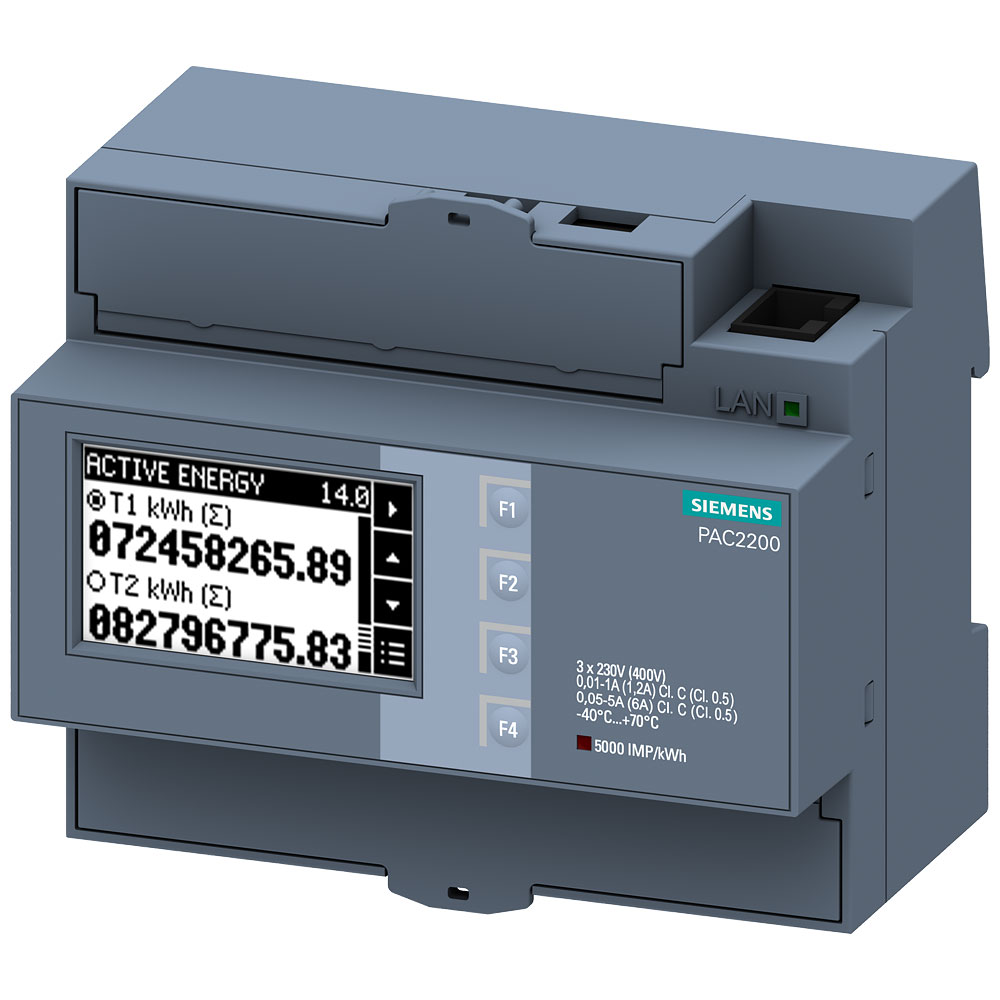

The Siemens 7KM2200-2EA30-1EA1 meter includes voltage and current display capabilities for panel measurement. It is designed for accurate and reliable monitoring of amperage and voltage, ideal for industrial and commercial electrical installations. This meter is commonly used to ensure efficient energy management and system performance evaluation.

Type	Meter
Accuracy Class	N/A
Approval	N/A
Calibrated	false
Degree of protection (IP)	IP40
Degree of protection (NEMA)	N/A
Depth	N/A
Dim	(L x W x H) 64 x 108 x 90 mm
Display technology	LCD
EEC40 signature	N/A
Energy type	Effecive and reactive power
Escapement mechanism	true
Frequency	N/A
Height	90mm
IP Rating	IP20
Length	64mm
Max. current (Imax)	100A
Measurement type load profile	false
Measuring functions	Power current
Misc Attribute	7KM2200-2EA30-1EA1
Model	Measurement transformer
Mounting method	N/A
Nominal current (In)	5A
Nominal voltage (Un) L-L	3 - 480V
Nominal voltage (Un) N-L	3 - 276V
Number of positions total (counter)	12
Pole type	Three conductor/four conductor
Power Consumption	N/A
Pulse output	Electrical
Pulse rate	N/A
Pulse type	S0
Reading range (max.)	5A
Suitable For	Purchase/supply
Tariff control	N/A
Tariff type	Two-tariff
Type of indication	Digital
Type of interface	N/A
Type of meter	Electronic
Units of measurement	kWh
Weight	408g
Width	108mm
Width in number of modular spacings	6
With lock code	true
