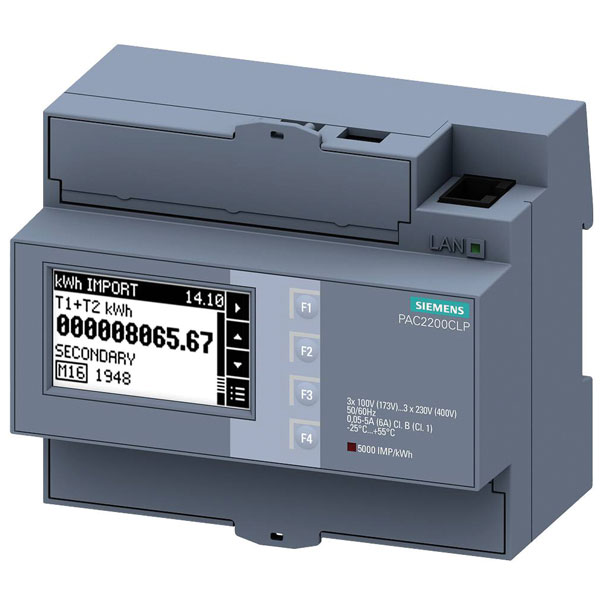

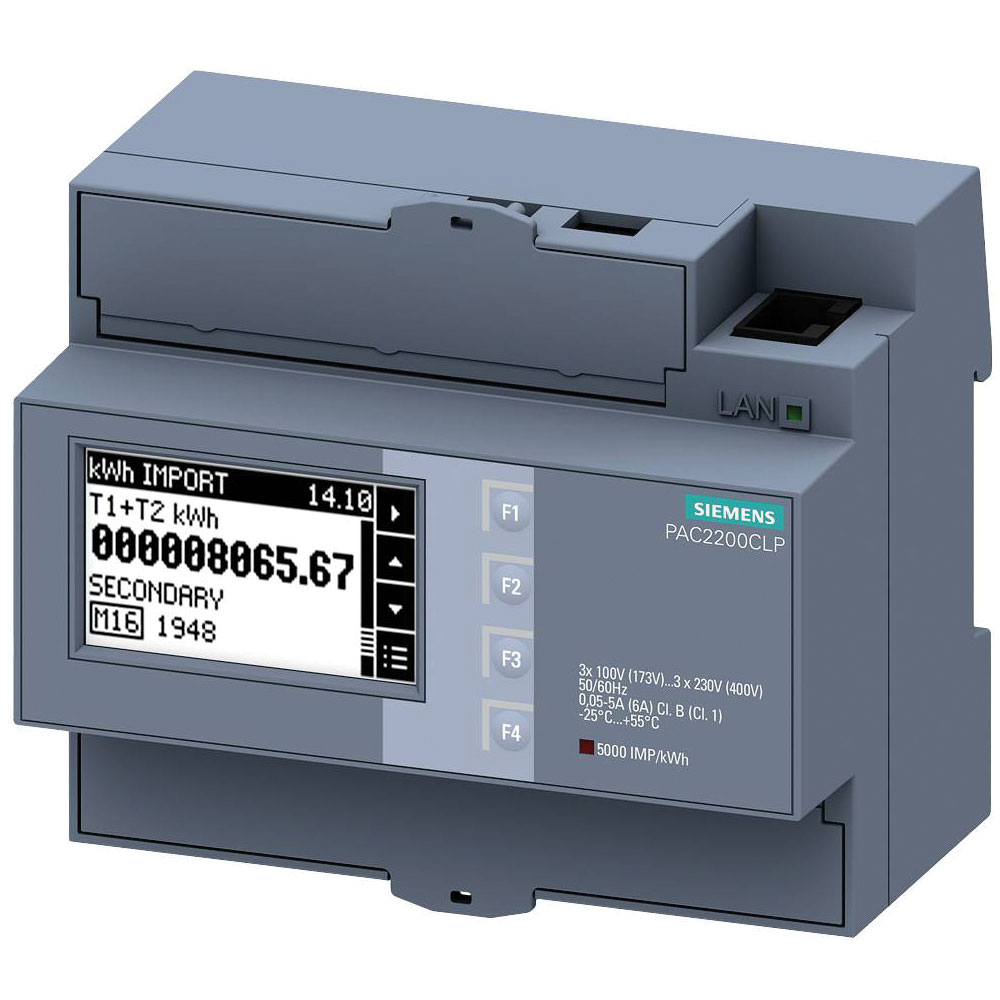

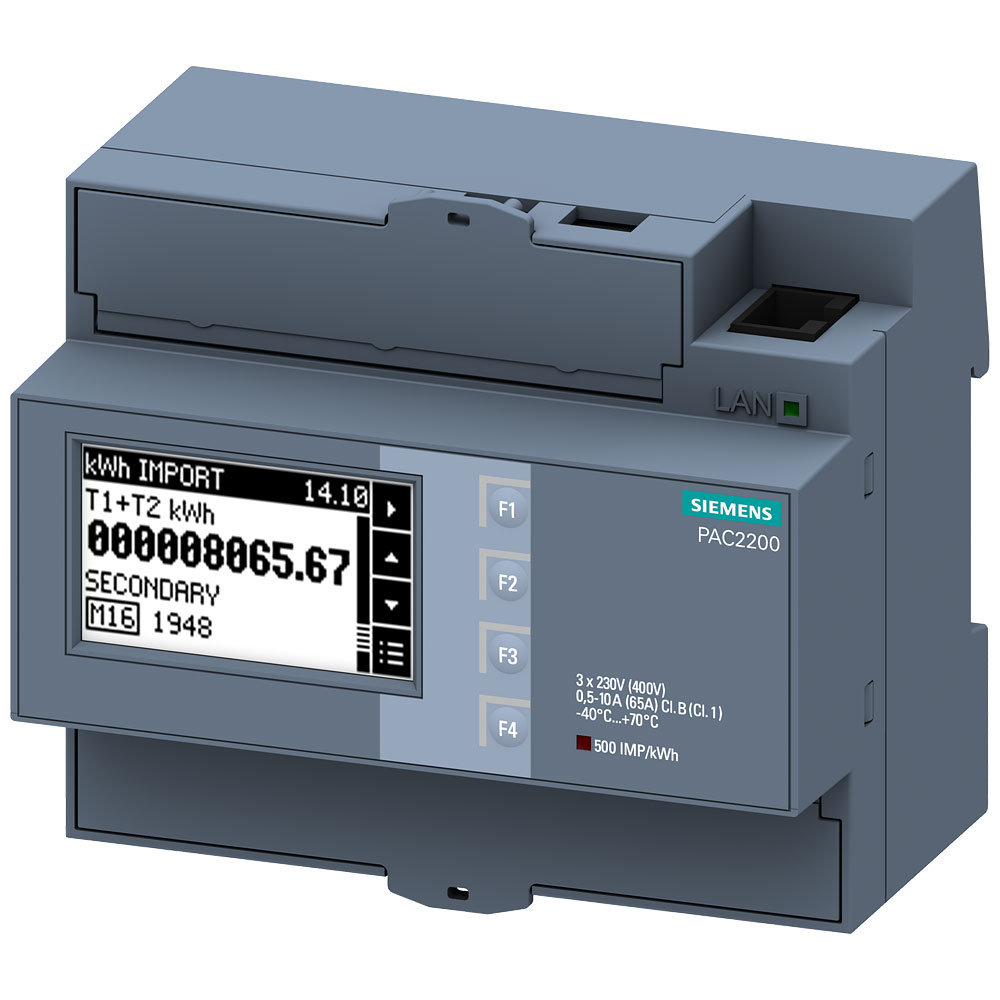

The Siemens 7KM2200-2EA40-1JA1 is a digital rail-mount meter designed for voltage and current display. It is commonly used in electrical panels for monitoring and managing energy consumption in industrial and commercial settings. This product offers accurate measurement and easy installation, making it ideal for energy management systems.
| Type |
Digital rail-mount meter |
| Accuracy Class |
N/A |
| Approval |
Measuring Instruments Directive |
| Calibrated |
true |
| Degree of protection (IP) |
IP40 |
| Degree of protection (NEMA) |
N/A |
| Depth |
N/A |
| Dim |
(W x H) 108 mm x 97 mm |
| Display lighting |
white |
| Display technology |
LCD |
| EEC40 signature |
N/A |
| Energy type |
Effecive and reactive power |
| Escapement mechanism |
true |
| Factory colour |
Grey |
| Frequency |
N/A |
| Height |
97mm |
| IP Rating |
IP40 |
| Max. current (Imax) |
65A |
| Measurement type load profile |
false |
| Measuring functions |
Power current |
| Misc Attribute |
7KM2200-2EA40-1JA1 |
| Model |
Direct measurement |
| Mounting method |
N/A |
| Nominal current (In) |
65A |
| Nominal voltage (Un) L-L |
3 - 480V |
| Nominal voltage (Un) N-L |
3 - 276V |
| Number of positions total (counter) |
12 |
| Pole type |
Three conductor/four conductor |
| Power Consumption |
N/A |
| Pulse output |
Electrical |
| Pulse rate |
N/A |
| Pulse type |
S0 |
| Rack unit |
6 U |
| Reading Category |
CAT III |
| Recess depth |
64mm |
| Suitable For |
Purchase/supply |
| Tariff control |
N/A |
| Tariff type |
Two-tariff |
| Type of indication |
Digital |
| Type of interface |
N/A |
| Type of meter |
Electronic |
| Units of measurement |
kWh |
| Weight |
310g |
| Width |
108mm |
| Width in number of modular spacings |
6 |
| With lock code |
true |
