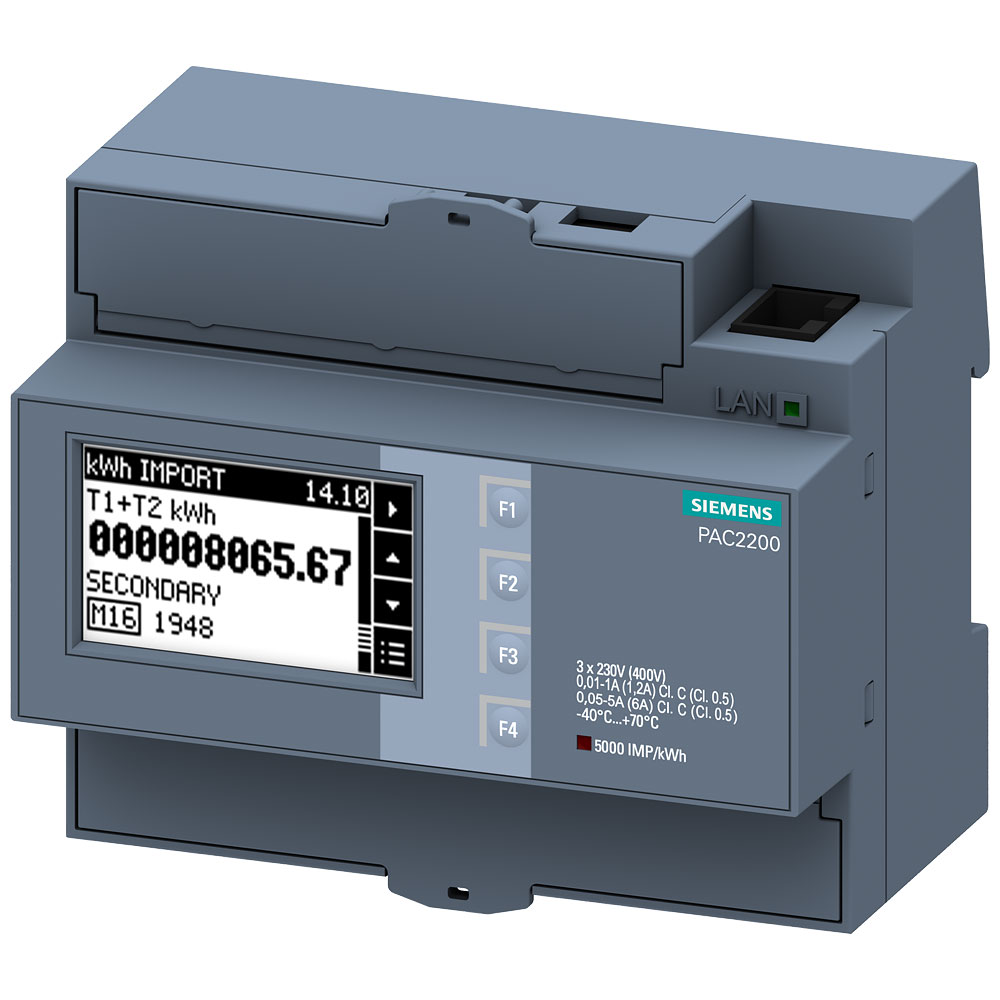

Siemens 7KM2200-2EA30-1JA1 SENTRON meter 3-phase Modbus TCP LCD

The Siemens 7KM2200-2EA30-1JA1 is a digital rail-mount meter that provides reliable voltage and current display. It features easy installation and is ideal for monitoring energy consumption in industrial and commercial settings. This panel meter ensures accurate readings, enhancing energy management efficiency.

Type	Digital rail-mount meter
Accuracy Class	N/A
Approval	Measuring Instruments Directive
Calibrated	true
Degree of protection (IP)	IP40
Degree of protection (NEMA)	N/A
Depth	N/A
Dim	(W x H) 108 mm x 97 mm
Display lighting	white
Display technology	LCD
EEC40 signature	N/A
Energy type	Effecive and reactive power
Escapement mechanism	true
Factory colour	Grey
Frequency	N/A
Height	97mm
IP Rating	IP40
Max. current (Imax)	100A
Measurement type load profile	false
Measuring functions	Power current
Misc Attribute	7KM2200-2EA30-1JA1
Model	Measurement transformer
Mounting method	N/A
Nominal current (In)	5A
Nominal voltage (Un) L-L	3 - 480V
Nominal voltage (Un) N-L	3 - 276V
Number of positions total (counter)	12
Pole type	Three conductor/four conductor
Power Consumption	N/A
Pulse output	Electrical
Pulse rate	N/A
Pulse type	S0
Rack unit	6 U
Reading Category	CAT III
Recess depth	64mm
Suitable For	Purchase/supply
Tariff control	N/A
Tariff type	Two-tariff
Type of indication	Digital
Type of interface	N/A
Type of meter	Electronic
Units of measurement	kWh
Weight	310g
Width	108mm
Width in number of modular spacings	6
With lock code	true
