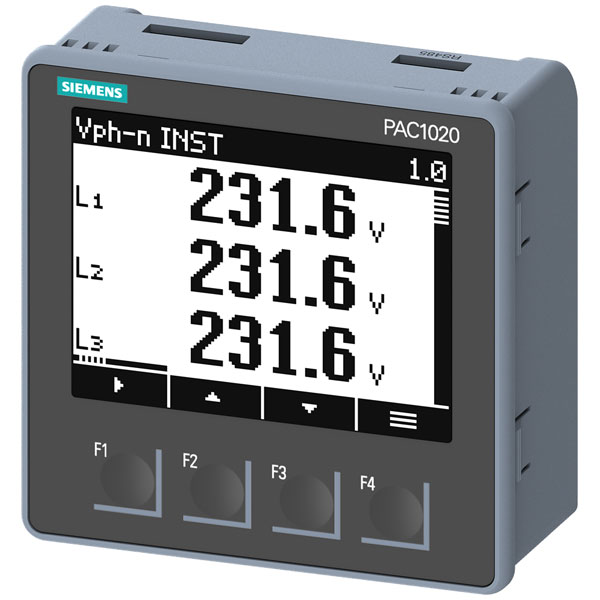

Siemens 7KM10200BA011DA0 Digital Panel Meter Black Plastic 96x96mm

Siemens 7KM1020-0BA01-1DA0 is a digital panel meter designed for precise monitoring of electrical parameters in commercial and industrial environments. This unit provides accurate measurement and display of voltage, current, and other critical electrical metrics, making it essential for ensuring efficient energy management and system reliability. Its robust design accommodates advanced data communication capabilities, integrating seamlessly into existing networked systems for real-time analysis and control. Engineers typically employ this digital panel meter in applications such as power distribution systems, automation control panels, and energy monitoring stations, where precision and dependability are critical for operational efficiency.

Accuracy class active energy according to IEC 62053-22	N/A
Accuracy class reactive energy according to IEC 62053-23	N/A
Ampere meter	true
Apparent power	N/A
Calibrated	N/A
Connectable conductor cross section solid-core	N/A
Degree of protection (IP), front side	N/A
Depth	42mm
Display	N/A
Display resolution (horizontal)	N/A
Display resolution (vertical)	N/A
Effective power measurement device	TRUE
Frequency meter	TRUE
Harmonics measurement	N/A
Height	96mm
Max. current (Imax)	N/A
Measured value memory	N/A
Measurement type load profile	N/A
Measuring range for frequency	N/A
Model	N/A
Mounting method	N/A
Nominal current (In)	N/A
Number of Analogue Inputs	0
Number of Analogue Outputs	0
Number of current measurement inputs	3
Number of Digital Inputs	1
Number of Digital Outputs	1
Number of Ethernet connections	0
Number of voltage measurement inputs	3
Pole type	N/A
Power Factor	N/A
Pulse counter	FALSE
Pulse output	N/A
Reactive power meter	TRUE
Remote display	N/A
Sampling frequency	N/A
Step angle (cos phi)	N/A
Suitable for RJ plug	N/A
Supply voltage AC 50 Hz	230 - 230V
Supply voltage AC 60 Hz	400 - 400V
Supply voltage DC	100 - 250V
Supporting protocol for IEC 61850 Ethernet	N/A
Supporting protocol for Modbus	true
Supporting protocol for OPC UA PubSub	false
Supporting protocol for other bus systems	N/A
Supporting protocol for PROFIBUS	false
Supporting protocol for PROFINET IO	false
Type	7KM1020-0BA01-1DA0
Voltage type (supply voltage)	N/A
Voltmeter	TRUE
Web server with HTTPS transfer protocol	N/A
Width	96
With audit logging (audit log)	N/A
With communication interface KNX	N/A
With communication interface RS-485	N/A
With firmware signature	true
With logging of security events (security event log)	N/A
With Role Based Access Control (RBAC)	N/A
With rotational speed meter	FALSE
Wth communication interface M-Bus	N/A
