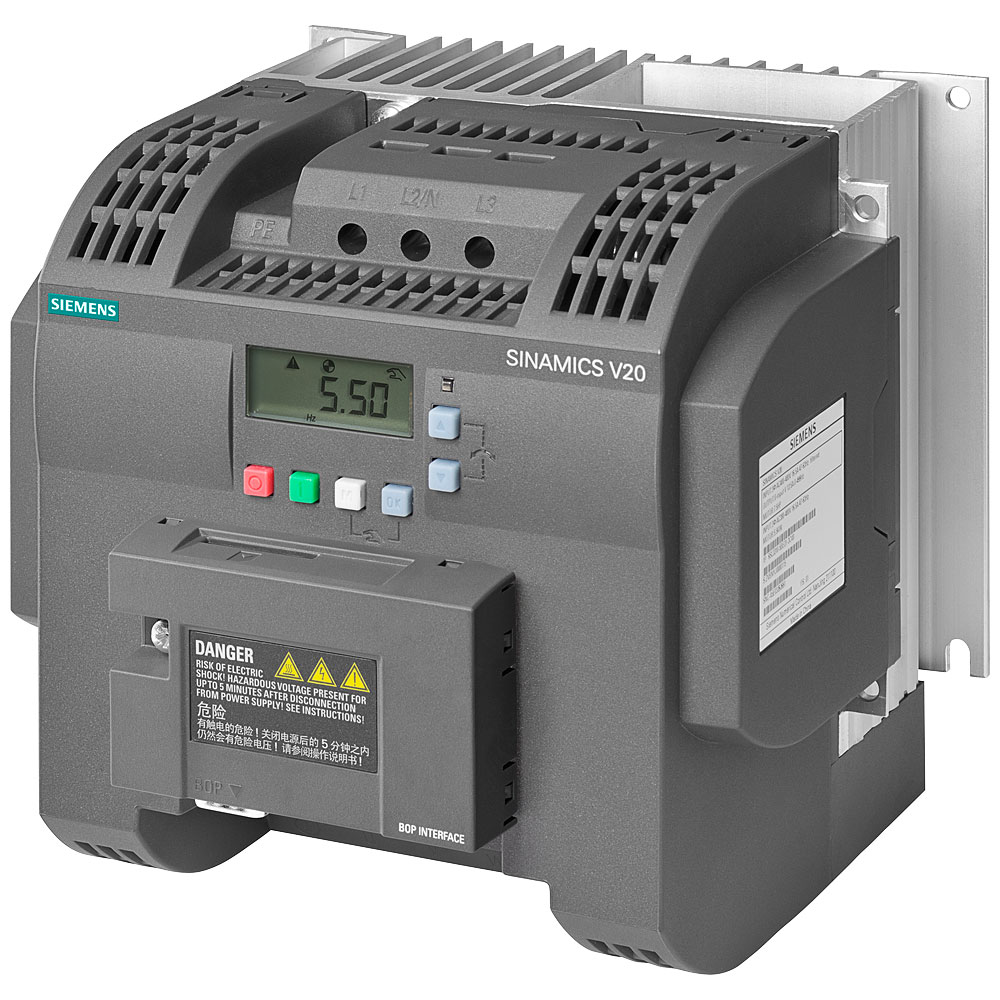

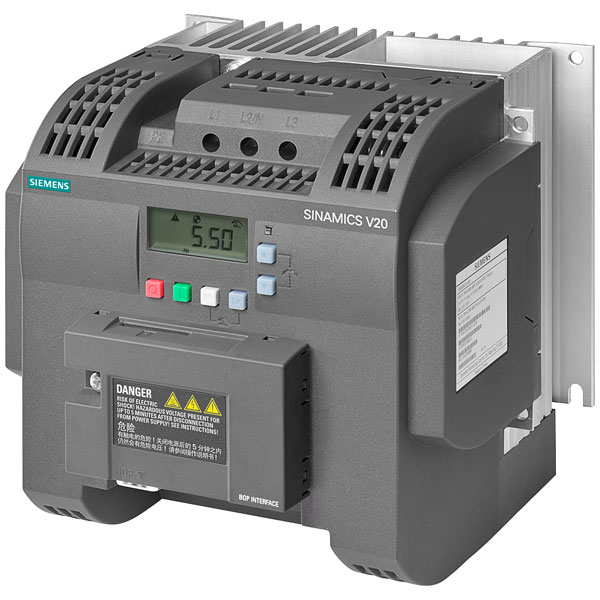

The Siemens frequency inverter FSA 0.75 kW 3-phase 400 V efficiently controls motor speed and torque in industrial settings. Designed for robust performance, it handles input from a variety of three-phase 400 V AC motors. Typical applications include automated machinery, conveyor systems, and process control systems.
| Type |
Inverter |
| 4-quadrant operation possible |
false |
| Application in domestic- and commercial area permitted |
false |
| Application in industrial area permitted |
true |
| Degree of protection (IP) |
N/A |
| Degree of protection (NEMA) |
N/A |
| Depth |
114.5mm |
| Dimensions |
(L x W x H) 145.5 x 90 x 140 mm |
| Filter class |
C3 |
| Filter class/protection level |
C3 according to EN 61800-3 |
| Frequency Range |
0 Hz - 599 Hz |
| Height |
140mm |
| Input Voltage Max |
400V |
| Integrated breaking resistance |
true |
| IP Rating |
IP20 |
| Length |
145.5mm |
| Mains Frequency |
N/A |
| Mains voltage |
380 - 480V |
| Max. frequency |
599Hz |
| Max. output at linear load at rated output voltage |
0.75kW |
| Max. output at quadratic load at rated output voltage |
0.75kW |
| Max. output frequency |
550Hz |
| Max. output voltage |
480V |
| Min. frequency |
0Hz |
| Misc Attribute |
FSA |
| Network |
3-phase |
| Nominal output current I2N |
2.2A |
| Number of Analogue Inputs |
2 |
| Number of Analogue Outputs |
1 |
| Number of Digital Inputs |
4 |
| Number of Digital Outputs |
N/A |
| Number of HW-interfaces industrial Ethernet |
0 |
| Number of HW-interfaces other |
1 |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces RS-232 |
1 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
1 |
| Number of HW-interfaces serial TTY |
0 |
| Number of HW-interfaces USB |
0 |
| Number of interfaces PROFINET |
0 |
| Number of phases input |
3 |
| Number of phases output |
3 |
| Output rating (max.) |
0.75kW |
| Output Voltage |
400/480V |
| Power Consumption |
N/A |
| Relative symmetric net frequency tolerance |
5% |
| Relative symmetric net voltage tolerance |
10% |
| Supporting protocol for ASI |
false |
| Supporting protocol for AS-Interface Safety at Work |
false |
| Supporting protocol for BACnet |
N/A |
| Supporting protocol for CAN |
false |
| Supporting protocol for Data-Highway |
false |
| Supporting protocol for DeviceNet |
false |
| Supporting protocol for DeviceNet Safety |
false |
| Supporting protocol for EtherNet/IP |
false |
| Supporting protocol for Foundation Fieldbus |
false |
| Supporting protocol for INTERBUS |
false |
| Supporting protocol for INTERBUS-Safety |
false |
| Supporting protocol for KNX |
false |
| Supporting protocol for LON |
false |
| Supporting protocol for Modbus |
true |
| Supporting protocol for other bus systems |
true |
| Supporting protocol for PROFIBUS |
false |
| Supporting protocol for PROFINET CBA |
false |
| Supporting protocol for PROFINET IO |
false |
| Supporting protocol for PROFIsafe |
false |
| Supporting protocol for SafetyBUS p |
false |
| Supporting protocol for SERCOS |
false |
| Supporting protocol for SUCONET |
false |
| Supporting protocol for TCP/IP |
false |
| Type of converter |
U converter |
| Width |
90mm |
| With control element |
N/A |
| With optical interface |
false |
| With PC connection |
false |
