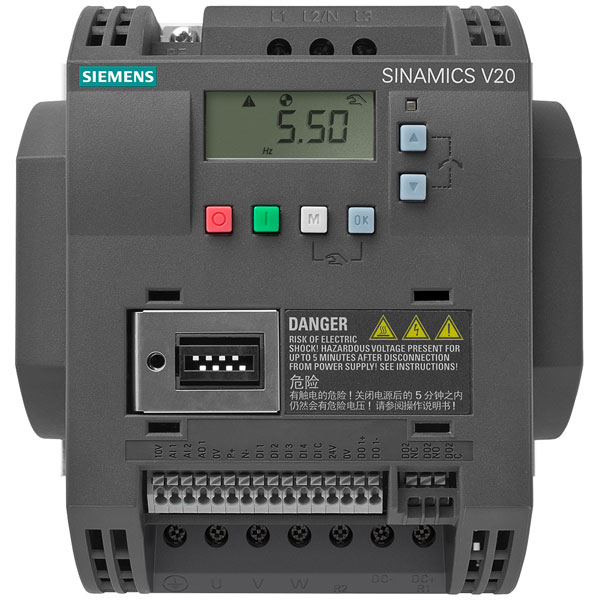

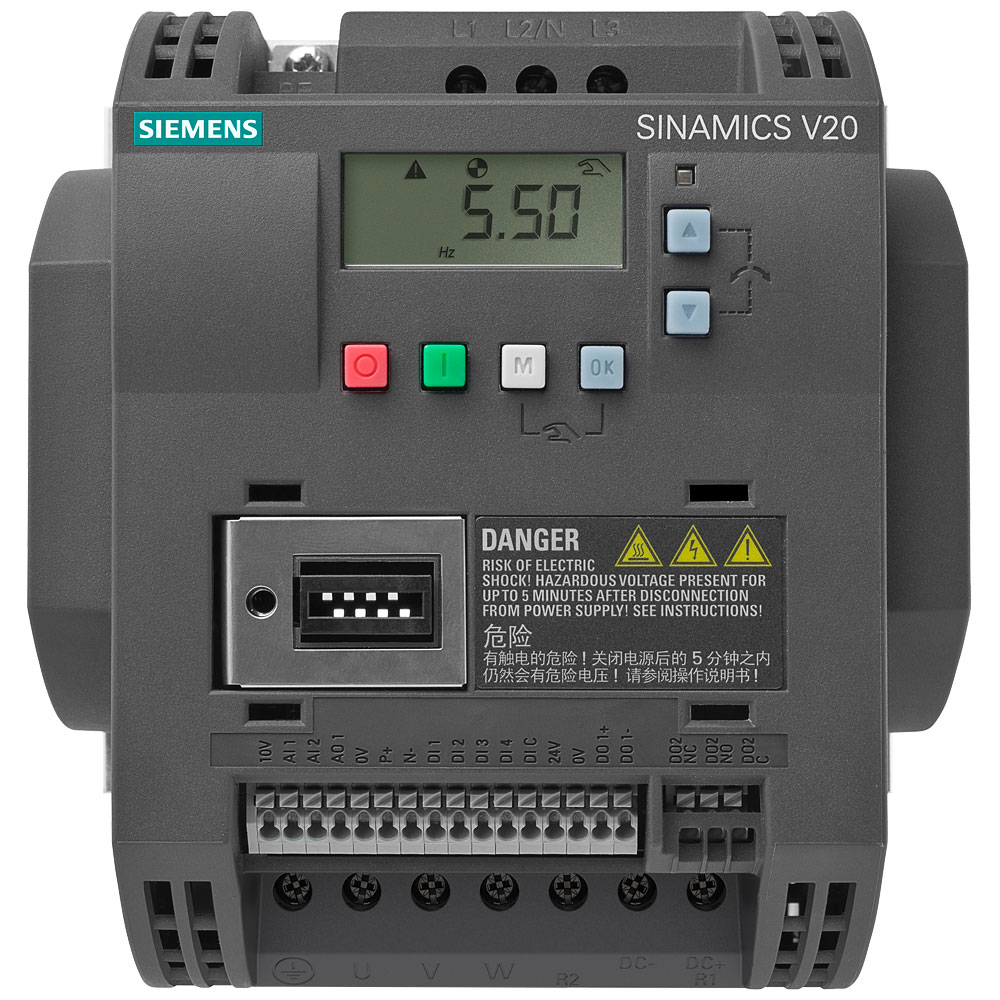

The Siemens Inverter 6SL3210-5BE27-5CV0 is a frequency converter designed for use with motors rated at 7.5 kW, supporting a voltage range of 380 V to 480 V. It provides efficient motor control in industrial applications, enhancing energy savings and operational flexibility. Manufactured by Siemens, this inverter is ideal for automation systems requiring precise speed and torque control.
| Type |
Inverter |
| 4-quadrant operation possible |
false |
| AC input voltage |
380 - 480 V |
| Application in domestic- and commercial area permitted |
false |
| Application in industrial area permitted |
true |
| Country of origin |
China |
| Degree of protection (IP) |
N/A |
| Degree of protection (NEMA) |
N/A |
| Depth |
172.5mm |
| Dimensions |
(W x H x D) 240 x 206.5 x 172.5 mm |
| Frequency Range |
0 Hz - 550 Hz |
| Height |
206.5mm |
| Integrated breaking resistance |
true |
| International Protection (IP) code |
IP20 |
| IP Rating |
IP20 |
| Mains Frequency |
N/A |
| Mains voltage |
380 - 480V |
| Max. frequency |
550Hz |
| Max. output at linear load at rated output voltage |
7.5kW |
| Max. output at quadratic load at rated output voltage |
7.5kW |
| Max. output frequency |
550Hz |
| Max. output voltage |
480V |
| Min. frequency |
0Hz |
| Misc Attribute |
6SL3210-5BE27-5CV0 |
| Nominal Current |
16.5A |
| Nominal output current I2N |
16.5A |
| Number of Analogue Inputs |
2 |
| Number of Analogue Outputs |
1 |
| Number of Digital Inputs |
4 |
| Number of Digital Outputs |
N/A |
| Number of HW-interfaces industrial Ethernet |
0 |
| Number of HW-interfaces other |
1 |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces RS-232 |
1 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
1 |
| Number of HW-interfaces serial TTY |
0 |
| Number of HW-interfaces USB |
0 |
| Number of input phases |
3 |
| Number of interfaces PROFINET |
0 |
| Number of phases input |
3 |
| Number of phases output |
3 |
| Output rating (max.) |
7.5kW |
| Package depth |
295mm |
| Package height |
225mm |
| Package width |
274mm |
| Power Consumption |
N/A |
| Product colour |
Black |
| Relative symmetric net frequency tolerance |
5% |
| Relative symmetric net voltage tolerance |
-15% |
| Supporting protocol for ASI |
false |
| Supporting protocol for AS-Interface Safety at Work |
false |
| Supporting protocol for BACnet |
N/A |
| Supporting protocol for CAN |
false |
| Supporting protocol for Data-Highway |
false |
| Supporting protocol for DeviceNet |
false |
| Supporting protocol for DeviceNet Safety |
false |
| Supporting protocol for EtherNet/IP |
false |
| Supporting protocol for Foundation Fieldbus |
false |
| Supporting protocol for INTERBUS |
false |
| Supporting protocol for INTERBUS-Safety |
false |
| Supporting protocol for KNX |
false |
| Supporting protocol for LON |
false |
| Supporting protocol for Modbus |
true |
| Supporting protocol for other bus systems |
true |
| Supporting protocol for PROFIBUS |
false |
| Supporting protocol for PROFINET CBA |
false |
| Supporting protocol for PROFINET IO |
false |
| Supporting protocol for PROFIsafe |
false |
| Supporting protocol for SafetyBUS p |
false |
| Supporting protocol for SERCOS |
false |
| Supporting protocol for SUCONET |
false |
| Supporting protocol for TCP/IP |
false |
| Type of converter |
U converter |
| Width |
240mm |
| With control element |
N/A |
| With optical interface |
false |
| With PC connection |
false |
