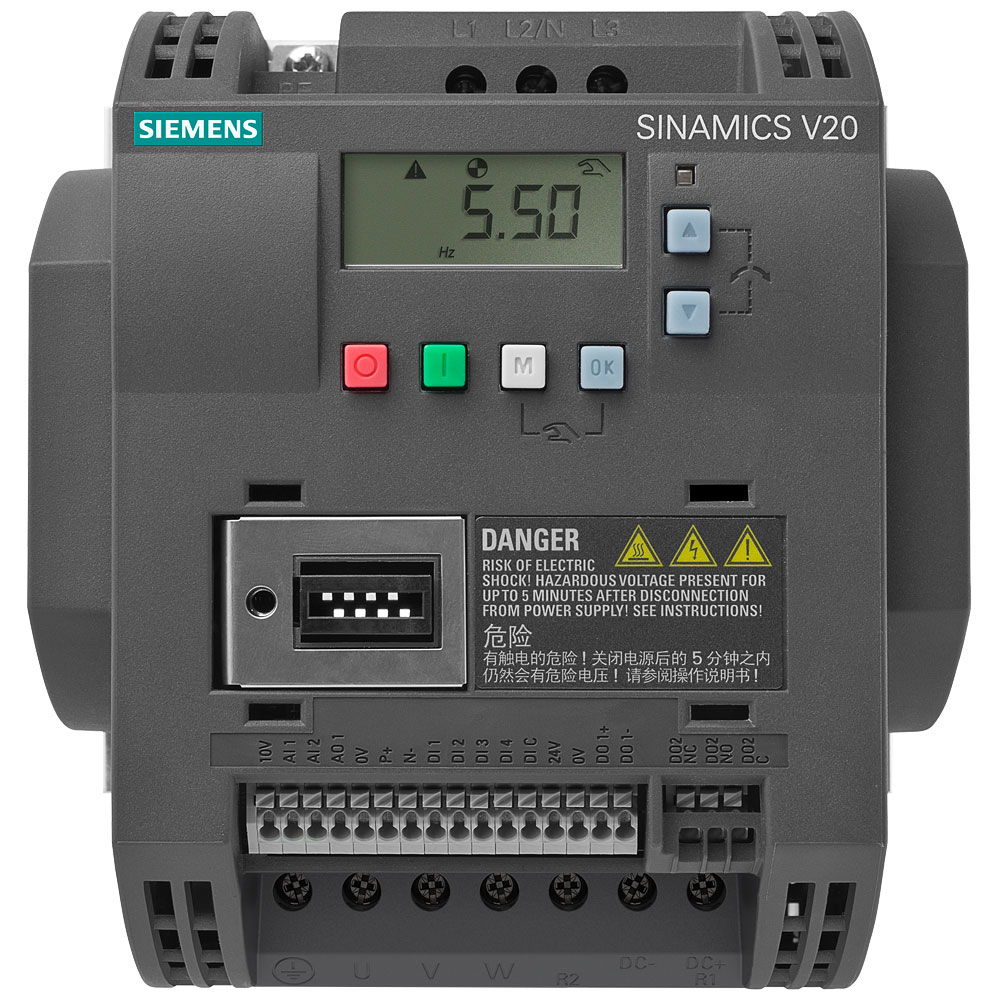

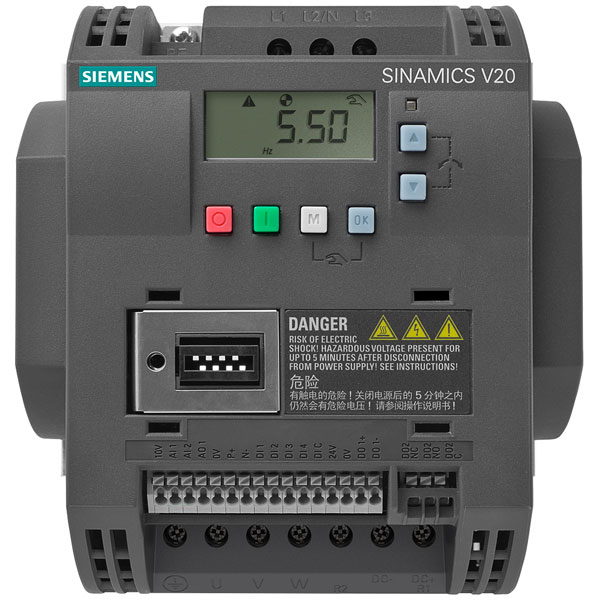

Siemens manufactures the Frequency inverter 6SL3210-5BE25-5CV0 with a power rating of 5.5 kW for 3-phase 400 V systems. This frequency converter is designed for efficient motor control and is commonly used in industrial automation applications. Its robust design supports enhanced performance and energy efficiency.
| Type |
Inverter |
| 4-quadrant operation possible |
FALSE |
| Application in domestic- and commercial area permitted |
FALSE |
| Application in industrial area permitted |
TRUE |
| Degree of protection (IP) |
IP20 |
| Degree of protection (NEMA) |
N/A |
| Depth |
169mm |
| Dimensions |
(L x W x H) 169 x 184 x 140 mm |
| Filter class |
C3 |
| Filter class/protection level |
C3 according to EN 61800-3 |
| Frequency Range |
0 Hz - 599 Hz |
| Height |
182mm |
| Integrated breaking resistance |
FALSE |
| IP Rating |
IP20 |
| Length |
169mm |
| Mains Frequency |
N/A |
| Mains voltage |
380 - 480V |
| Max. frequency |
599Hz |
| Max. output at linear load at rated output voltage |
5.5kW |
| Max. output at quadratic load at rated output voltage |
5.5kW |
| Max. output frequency |
550Hz |
| Max. output voltage |
480V |
| Maximum Input Volage |
400V |
| Min. frequency |
0Hz |
| Misc Attribute |
6SL3210-5BE25-5CV0 |
| Network |
3-phase |
| Nominal output current I2N |
12.5A |
| Number of Analogue Inputs |
2 |
| Number of Analogue Outputs |
1 |
| Number of Digital Inputs |
4 |
| Number of Digital Outputs |
N/A |
| Number of HW-interfaces industrial Ethernet |
0 |
| Number of HW-interfaces other |
1 |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces RS-232 |
1 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
1 |
| Number of HW-interfaces serial TTY |
0 |
| Number of HW-interfaces USB |
0 |
| Number of interfaces PROFINET |
0 |
| Number of phases input |
3 |
| Number of phases output |
3 |
| Output rating (max.) |
5.5kW |
| Output Voltage |
400/480V |
| Power Consumption |
N/A |
| Relative symmetric net frequency tolerance |
-5% |
| Relative symmetric net voltage tolerance |
10% |
| Supporting protocol for ASI |
FALSE |
| Supporting protocol for AS-Interface Safety at Work |
FALSE |
| Supporting protocol for BACnet |
N/A |
| Supporting protocol for CAN |
FALSE |
| Supporting protocol for Data-Highway |
FALSE |
| Supporting protocol for DeviceNet |
FALSE |
| Supporting protocol for DeviceNet Safety |
FALSE |
| Supporting protocol for EtherNet/IP |
FALSE |
| Supporting protocol for Foundation Fieldbus |
FALSE |
| Supporting protocol for INTERBUS |
FALSE |
| Supporting protocol for INTERBUS-Safety |
FALSE |
| Supporting protocol for KNX |
FALSE |
| Supporting protocol for LON |
FALSE |
| Supporting protocol for Modbus |
TRUE |
| Supporting protocol for other bus systems |
TRUE |
| Supporting protocol for PROFIBUS |
FALSE |
| Supporting protocol for PROFINET CBA |
FALSE |
| Supporting protocol for PROFINET IO |
FALSE |
| Supporting protocol for PROFIsafe |
FALSE |
| Supporting protocol for SafetyBUS p |
FALSE |
| Supporting protocol for SERCOS |
FALSE |
| Supporting protocol for SUCONET |
FALSE |
| Supporting protocol for TCP/IP |
FALSE |
| Type of converter |
U converter |
| Weight |
2.6kg |
| Width |
184mm |
| With control element |
N/A |
| With optical interface |
FALSE |
| With PC connection |
FALSE |
