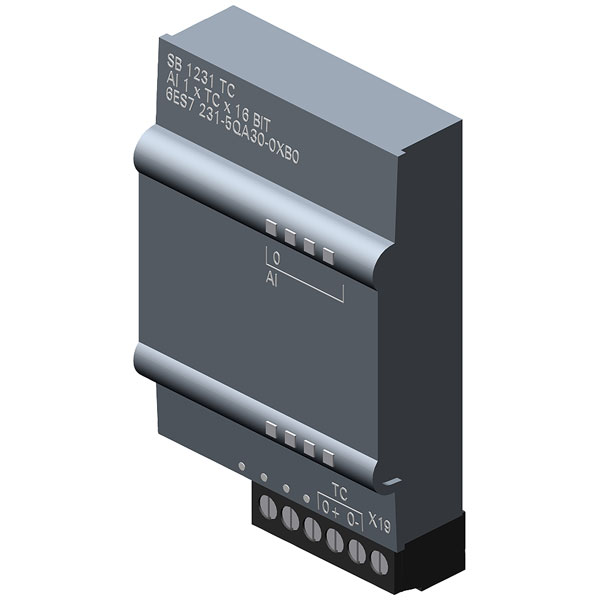

Siemens 6ES7231-5QA30-0XB0 SB 1231 Analogue Input Module

Image Representative of Range

Siemens 6ES7231-5QA30-0XB0 SB 1231 Analogue Input Module

Siemens
Order Code:

55-6264

Brand: Siemens MPN: 6ES72315QA300XB0 EAN-13: 6940408100923
Qty Was Unit Price (Ex VAT)
1+ £152.31 £151.25
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
54 available to back orderBack-order availability date - 05/05/2026

The Siemens 6ES7231-5QA30-0XB0 SB 1231 is an Analogue Input Signal Board that converts analogue signals from Thermocouple inputs and processes them into digital signals for internal processing by the SIMATIC S7-1200. With analogue signal boards, users can optimally adapt their controllers even to more complex tasks.

Signal boards are plugged directly into the SIMATIC S7-1200-CPU and are thus connected electrically and mechanically with the CPU.


  • Supply voltage: 24V DC
  • Input current: 5mA
  • Power losses: typ. 0.5W
  • Analogue inputs 1:Current or voltage differential inputs
  • Permissible input frequency: ±35V
  • Dimensions: 38(W) x 62(H) x 21(D)mm
  • Weight: 35g
  • Specification: Thermocouples
  • Type: Analogue Input Module SB 1231
  • Manufacturer's part: Siemens 6ES7231-5QA30-0XB0
Analogue inputs configurable true
Analogue outputs configurable true
Appendant operation agent (Ex ia) false
Appendant operation agent (Ex ib) false
Depth 21mm
Display No
Explosion safety category for dust N/A
Explosion safety category for gas N/A
Height 62mm
Input signal, configurable true
Input, current false
Input, resistance thermometer false
Input, resistor false
Input, thermocouple true
Input, voltage true
Number of Analogue Inputs 1
Number of Analogue Outputs 0
Number of Digital Inputs 0
Number of Digital Outputs 0
Operating Voltage 24V DCV
Output signal configurable true
Output, current false
Output, voltage false
Performance level according to EN ISO 13849-1 N/A
Power Consumption N/A
Resolution of the analogue inputs 15bit
Resolution of the analogue outputs N/A
SIL according to IEC 61508 N/A
Suitable for safety functions false
Type Add-on module
Type of electric connection N/A
Width 38mm
