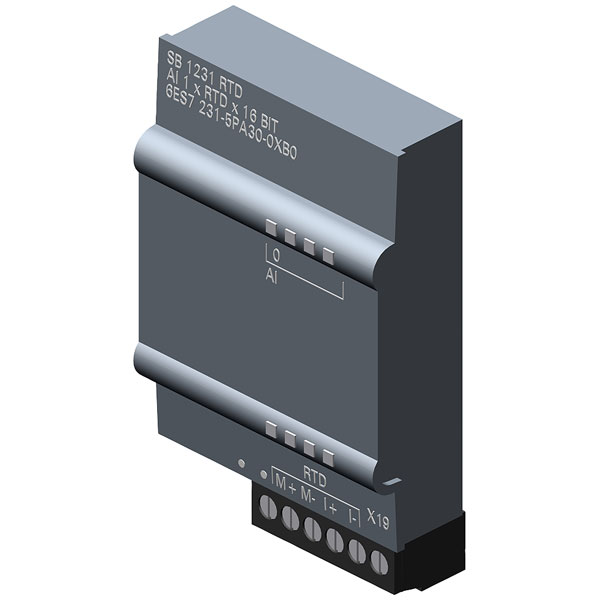

The Siemens 6ES7231-5PA30-0XB0 SB 1231 is an Analogue Input Signal Board that converts analogue signals from the Resistance Thermometer and processes them into digital signals for internal processing by the SIMATIC S7-1200. With analogue signal boards, users can optimally adapt their controllers even to more complex tasks.
The Signal Board is plugged directly into the SIMATIC S7-1200-CPU and are thus connected electrically and mechanically with the CPU.
- Supply voltage: 24V DC
- Input current: 5mA
- Power losses: typ. 0.5W
- Analogue inputs 1:Current or voltage differential inputs
- Permissible input frequency: ±35V
- Dimensions: 38(W) x 62(H) x 21(D)mm
- Weight: 35g
- Specification: Resistance Thermometer
- Type: Analogue Input Module SB 1231
- Manufacturer's part: Siemens 6ES7231-5PA30-0XB0
| Analogue inputs configurable |
true |
| Analogue outputs configurable |
true |
| Appendant operation agent (Ex ia) |
false |
| Appendant operation agent (Ex ib) |
false |
| Depth |
21mm |
| Display |
No |
| Explosion safety category for dust |
N/A |
| Explosion safety category for gas |
N/A |
| Height |
62mm |
| Input signal, configurable |
true |
| Input, current |
false |
| Input, resistance thermometer |
true |
| Input, resistor |
true |
| Input, thermocouple |
false |
| Input, voltage |
true |
| Number of Analogue Inputs |
1 |
| Number of Analogue Outputs |
0 |
| Number of Digital Inputs |
0 |
| Number of Digital Outputs |
0 |
| Operating Voltage |
24V DCV |
| Output signal configurable |
true |
| Output, current |
false |
| Output, voltage |
false |
| Performance level according to EN ISO 13849-1 |
N/A |
| Power Consumption |
N/A |
| Resolution of the analogue inputs |
15bit |
| Resolution of the analogue outputs |
N/A |
| SIL according to IEC 61508 |
N/A |
| Suitable for safety functions |
false |
| Type |
Add-on module |
| Type of electric connection |
N/A |
| Width |
38mm |
