Siemens 6ES7223-1BL32-0XB0 SM 1223 Digital Input / Output Module

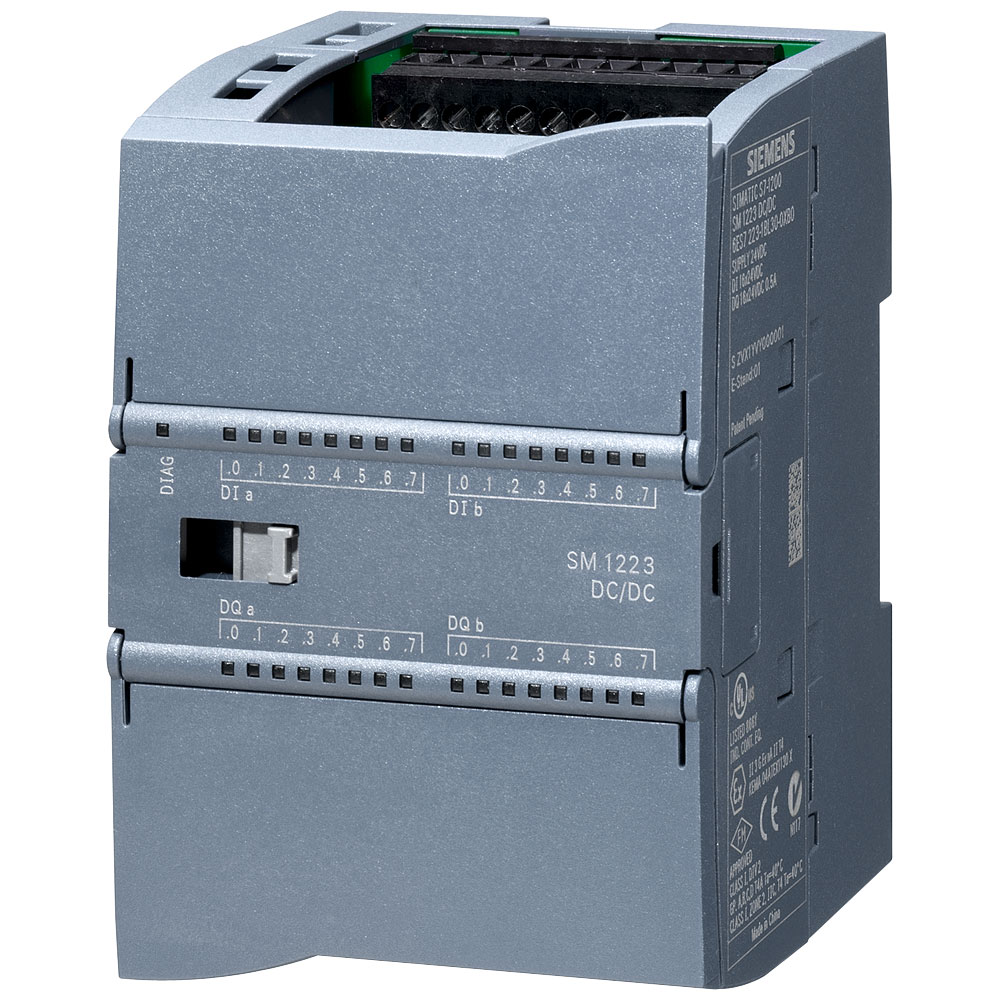

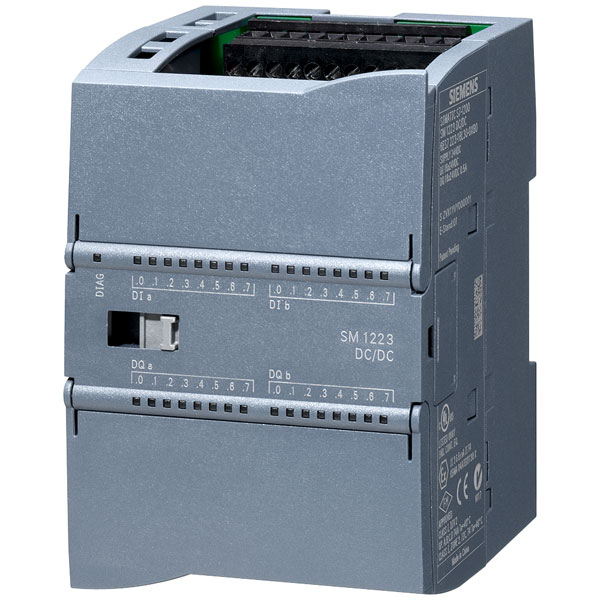

Image Representative of Range

Siemens 6ES7223-1BL32-0XB0 SM 1223 Digital Input / Output Module

Siemens
MPN
6ES72231BL320XB0
Brand
Siemens
EAN-13
6940408100527
Order Code
55-8031
View Full Product Range (5)
Qty Unit Price (Ex VAT)
1+ £312.49
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 6 weeks

The Siemens 6ES7223-1BL32-0XB0 is a DIN Rail SM 1223 Digital Input/ Output Signal Module that will convert the level of the external digital signals from the process into the internal signal level of the S7-1200. The digital signal can then be mixed as desired by the user to the relevant task.


  • SPS component (category): SPS add-on module
  • Specification: 16 DI/16DO 24V/DC, 0.5A
  • Supply voltage: 24V DC
  • Load (Inductive): 0.5A
  • Digital outputs: 16
  • Input current: 185mA
  • Short circuit protection: NO
  • Type: SM 1223
  • Manufacturer part: Siemens 6ES7223-1BL32-0XB0
Appendant operation agent (Ex ia) false
Appendant operation agent (Ex ib) false
Channel Type Source channel
Channels quantity 32 channels
Compliance certificates REACH, RoHS, WEEE
Country of origin China
DC input voltage 24 V
Depth 75mm
Digital input channels quantity 16 channels
Digital inputs configurable true
Digital output channels quantity 16 channels
Digital outputs configurable true
Display No
Explosion safety category for dust N/A
Explosion safety category for gas N/A
Height 100mm
Input current at signal 1 4mA
Module type Digital
Nominal output voltage 24 V
Number of Analogue Inputs 0
Number of Analogue Outputs 0
Number of Digital Inputs 0
Number of Digital Outputs 16
Operating Voltage 24V DCV
Output Current 0.5A
Package depth 111mm
Package height 85mm
Package width 88mm
Performance level according to EN ISO 13849-1 N/A
Permitted voltage at input 0 - 30V
Permitted voltage at output 20.4 - 28.8V
Power Consumption N/A
Product colour Black
Purpose System power
Redundancy false
Short-circuit protection, outputs available false
Signal direction Input/output
SIL according to IEC 61508 N/A
Suitable for safety functions false
Supply voltage AC 50 Hz N/A
Supply voltage AC 60 Hz N/A
Supply voltage DC 20.4 - 28.8V
Sustainability compliance Yes
Time delay at signal change 0.2 - 12.8ms
Type Add-on module
Type of digital output Transistor
Type of electric connection N/A
Type of output voltage DC
Type of voltage (input voltage) DC
Voltage type (supply voltage) DC
Weight 288g
Width 70mm
