Siemens 6ES7151-1CA00-3BL0 ET 200S Compact 16 DI / 16 DO Std 24VDC 3Ms; 24VDC

Siemens
Order Code:

55-8062

Brand: Siemens MPN: 6ES7151-1CA00-3BL0 EAN-13: 4025515073642

Discontinued

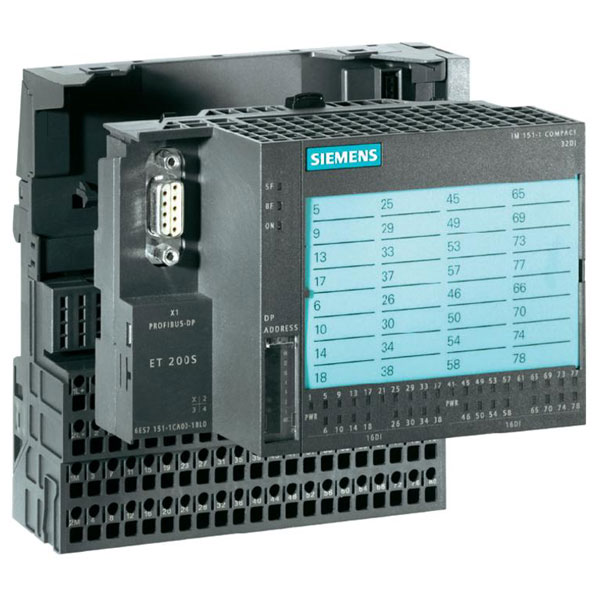

The Siemens 6ES7151-1CA00-3BL0 is a SIMATIC ET 200S Compact DIN Rail Interface Module that permits the use as a block I/O. The functionality is based on the IM 151-1 BASIC and comprises an interface module and 16 Digital Inputs and 16 Digital Outputs.

By expanding the block with ET 200S modules (up to 12 modules), a total of 128 channels can be connected to the SIMATIC ET 200S Compact. Thus frequently required inputs/outputs in block form can be combined with bit-modular specialist modules such as motor starters, frequency converters, pneumatics, etc.


  • SIMATIC S7-200 is easy: programming software with Windows user interface
  • Easy installation onto a top hat profile rail
  • Mounting: DIN Rail
  • Own S7-200 net with PPI protocol
  • Freely programmable interface
  • Digital connections: 16 inputs/ 16 outputs
  • Voltage: 24V DC
  • Current: 100mA
  • Dimensions: 120(W) x 81(H) x 58(D)mm
  • Weight: 230g
  • Type: SIMATIC DP ET 200S Compact
  • Manufacturer's part: Siemens 6ES7151-1CA00-3BL0
Type Controller (PLC)
Display No
Number of Analogue Inputs 0
Number of Analogue Outputs 0
Number of Digital Inputs 16
Number of Digital Outputs 16
Operating Voltage 24V DCV
