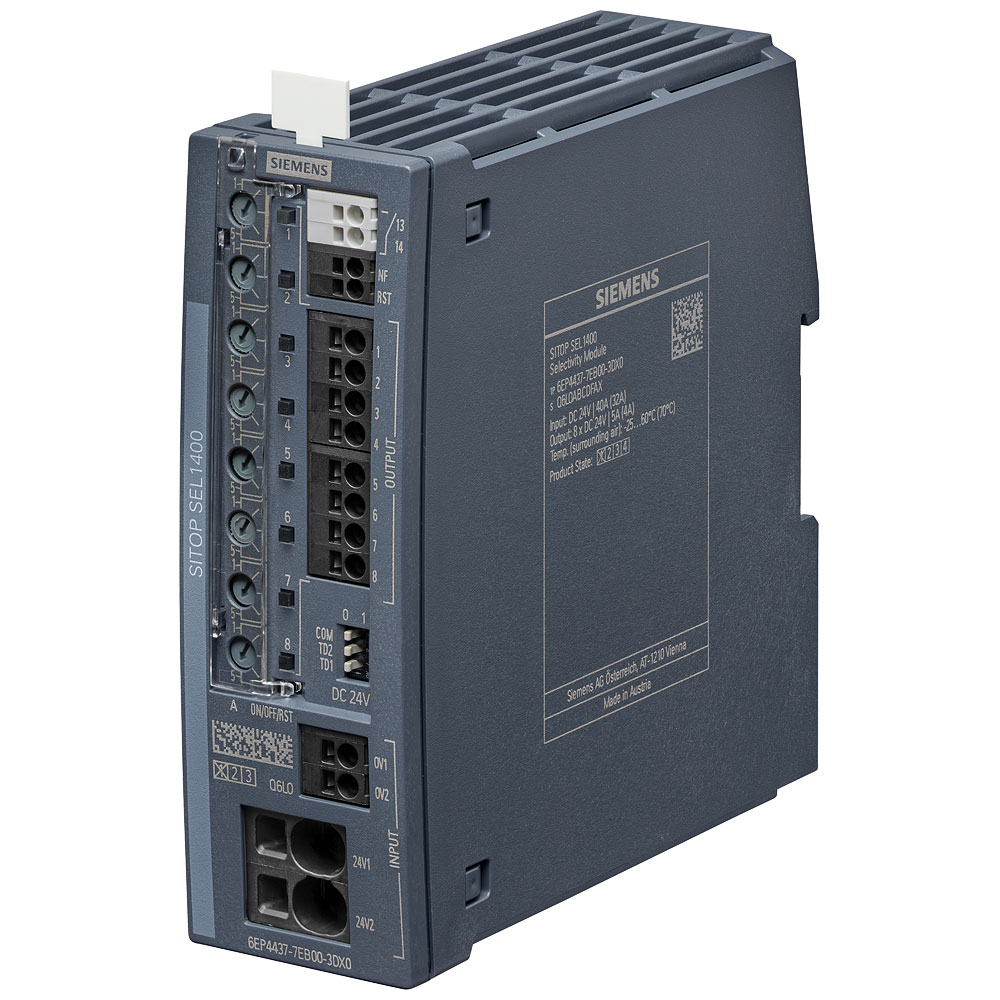

The Siemens 6EP4437-7EB00-3DX0 is a monitoring relay used for voltage and phase monitoring in electrical systems. It is designed to offer reliable protection and performance, ensuring system stability in industrial applications. Typically, it is employed in environments requiring precise control and monitoring of electrical parameters.
| Type |
6EP4437-7EB00-3DX0 |
| Contains function DC-voltage overcurrent |
TRUE |
| Contains function DC-voltage under current |
FALSE |
| Current measuring range |
1 - 5A |
| Depth |
125mm |
| External current transformer |
N/A |
| External power supply required |
N/A |
| Function DC-current hysteresis |
TRUE |
| Height |
135mm |
| Max. permitted delay-on energization time |
5s |
| Max. permitted off-delay time |
N/A |
| Min. adjustable delay-on energization time |
N/A |
| Min. adjustable off-delay time |
N/A |
| Misc Attribute |
6EP4437-7EB00-3DX0 |
| Number of contacts as change-over contact |
0 |
| Number of contacts as normally closed contact |
0 |
| Number of contacts as normally open contact |
0 |
| Operating voltage AC 50 Hz |
N/A |
| Operating voltage AC 60 Hz |
N/A |
| Operating voltage DC |
N/A |
| Rated switch current |
N/A |
| Response value amperage 1 |
N/A |
| Response value amperage 2 |
N/A |
| Single-phase hysteresis possible |
N/A |
| Single-phase overcurrent possible |
N/A |
| Single-phase under current possible |
N/A |
| Supply voltage AC 50 Hz |
N/A |
| Supply voltage AC 60 Hz |
N/A |
| Supply voltage DC |
N/A |
| Three-phase hysteresis possible |
N/A |
| Three-phase overcurrent possible |
N/A |
| Three-phase under current possible |
N/A |
| Type of current |
N/A |
| Type of electric connection |
Spring clamp connection |
| Voltage measuring range |
N/A |
| Voltage type (operating voltage) |
N/A |
| Voltage type (supply voltage) |
N/A |
| Voltage type for actuating |
DC |
| Width |
45 |
| With detachable clamps |
FALSE |
