Siemens 6EP34378SB000AY0 PSU 24V DC 40A rail mounted DIN 1pc

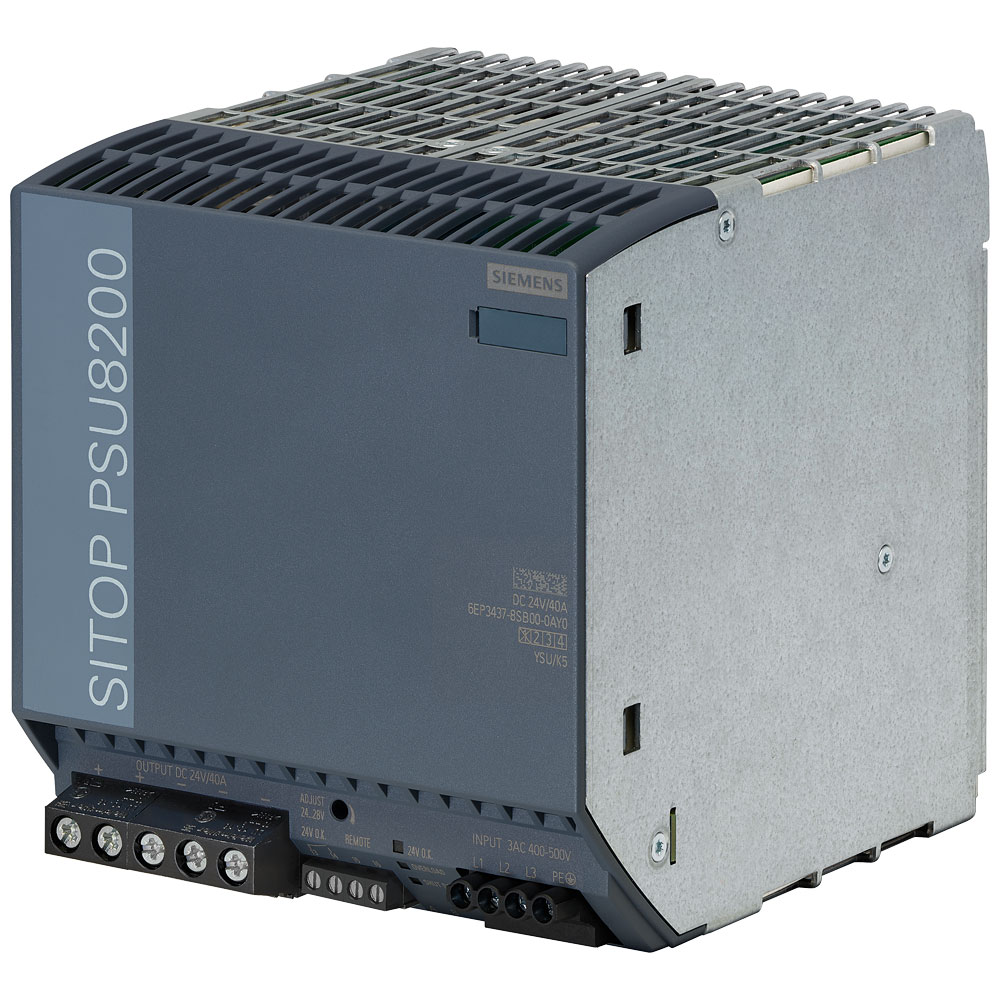

Image Representative of Range

Siemens 6EP34378SB000AY0 PSU 24V DC 40A rail mounted DIN 1pc

Siemens
Order Code:

07-0683

Brand: Siemens MPN: 6EP34378SB000AY0 EAN-13: 4025515154891
Qty Unit Price (Ex VAT)
1+ £415.43
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 6 weeks

The Siemens 6EP3437-8SB00-0AY0 is a DIN rail mounted power supply unit delivering 24 V DC at 40 A. Designed for industrial applications, this PSU ensures reliable and efficient power distribution. It is typically used in automation systems and machinery needing stable power supply.
Type Rail mounted PSU (DIN)
Output Voltage 24V DC
Output Current 40A
1st secondary output voltage 24 - 24V
2nd secondary output voltage N/A
3rd secondary output voltage N/A
Built-in height 225mm
Built-in width 135mm
Connection Screw terminal
Country of origin Romania
Degree of protection (IP) IP20
Degree of protection (NEMA) N/A
Depth 150mm
Direct mounting possible false
Height 145mm
Input voltage (max.) 500V AC
Max. output current 40A
Max. output current 1 40A
Max. output current 2 N/A
Max. output current 3 N/A
Misc Attribute 6EP3437-8SB00-0AY0
Nominal Input Voltage 400 V/AC
Nominal value output current 1 40A
Nominal value output current 2 N/A
Nominal value output current 3 N/A
Nominal value output voltage 1 24V
Nominal value output voltage 2 N/A
Nominal value output voltage 3 N/A
Output voltage stabilized true
Package depth 1480mm
Package height 2120mm
Package width 1960mm
Performance level according to EN ISO 13849-1 N/A
Phases 3
Power Consumption N/A
Power Output 960W
Power Supply Type Indoor
Product colour Multicolour
Quick installation guide Yes
Rated supply voltage AC 50 Hz 400 - 400V
Rated supply voltage AC 60 Hz 500 - 500V
Rated supply voltage DC N/A
Secondary voltage adjustable true
Short-circuit-proof true
SIL according to IEC 61508 N/A
Stabilized true
Suitable for distribution board true
Suitable for rail mounting true
Suitable for safety functions N/A
Type of electric connection N/A
Voltage type (supply voltage) AC
Wall mounting possible false
Width 135mm
Width in number of modular spacings N/A
