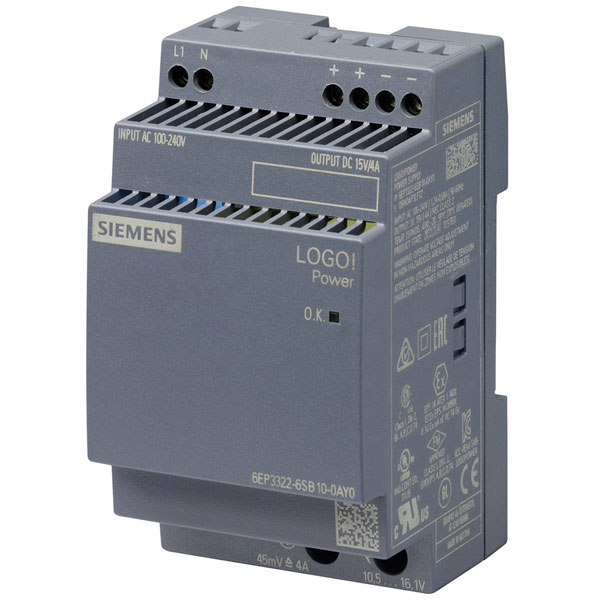

Manufactured by Siemens, the 6EP3322-6SB10-0AY0 PLC power supply unit is designed to provide reliable and consistent power to programmable logic controllers. It features robust construction and enhanced efficiency, making it ideal for industrial and automation applications. Typical uses include powering and protecting PLC systems in manufacturing, process control, and other industrial environments.
| Type |
PLC power supply unit |
| Output Voltage |
15V DC |
| Number of Outputs |
1 |
| Power Rating |
60W |
| 1st secondary output voltage |
15 - 15V |
| 2nd secondary output voltage |
N/A |
| 3rd secondary output voltage |
N/A |
| Built-in height |
130mm |
| Built-in width |
54mm |
| Connection |
Screw terminal |
| Degree of protection (IP) |
IP20 |
| Degree of protection (NEMA) |
N/A |
| Depth |
53mm |
| Dim |
(L x W x H) 53 x 54 x 90 mm |
| Direct mounting possible |
true |
| Height |
90mm |
| Input voltage (max.) |
240V AC |
| IP Rating |
IP20 |
| Length |
53mm |
| Max. operating voltage |
240V AC |
| Max. output current |
4A |
| Max. output current 1 |
4A |
| Max. output current 2 |
N/A |
| Max. output current 3 |
N/A |
| Min. input voltage |
100V AC |
| Min. operating voltage |
100V AC |
| Misc Attribute |
6EP3322-6SB10-0AY0 |
| Nominal value output current 1 |
4A |
| Nominal value output current 2 |
N/A |
| Nominal value output current 3 |
N/A |
| Nominal value output voltage 1 |
15V |
| Nominal value output voltage 2 |
N/A |
| Nominal value output voltage 3 |
N/A |
| Operating Voltage |
100 - 240 V AC |
| Output voltage stabilized |
true |
| Performance level according to EN ISO 13849-1 |
N/A |
| Phases |
1 |
| Power Consumption |
N/A |
| Power Output |
60W |
| Rated supply voltage AC 50 Hz |
240 - 240V |
| Rated supply voltage AC 60 Hz |
100 - 100V |
| Rated supply voltage DC |
N/A |
| Secondary voltage adjustable |
true |
| Short-circuit-proof |
true |
| SIL according to IEC 61508 |
N/A |
| Stabilized |
true |
| Suitable for distribution board |
true |
| Suitable for rail mounting |
true |
| Suitable for safety functions |
N/A |
| Type of electric connection |
N/A |
| Voltage type (supply voltage) |
AC/DC |
| Wall mounting possible |
true |
| Width |
54mm |
| Width in number of modular spacings |
N/A |
