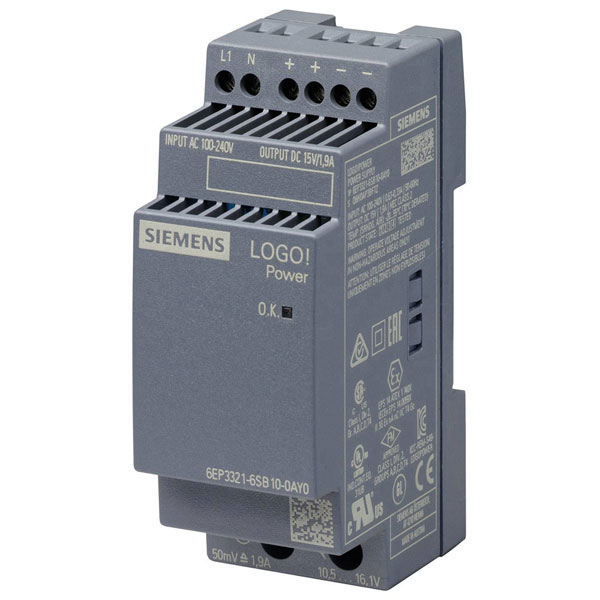

Siemens 6EP33216SB100AY0 LOGO!Power supply 15V/1.9A AC 100-240V input

The Siemens 6EP3321-6SB10-0AY0 PLC power supply unit is a reliable power source designed for use with programmable logic controllers. With robust construction, it offers consistent performance and efficiency critical in industrial automation environments. Typical applications include industrial control systems where steady power supply is essential for operational reliability.

Type	PLC power supply unit
Output Voltage	15V DC
Number of Outputs	1
Power Rating	28.5W
1st secondary output voltage	15 - 15V
2nd secondary output voltage	N/A
3rd secondary output voltage	N/A
Built-in height	130mm
Built-in Width	36mm
Connection	Screw terminal
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	53mm
Dim	(L x W x H) 53 x 36 x 90 mm
Direct mounting possible	true
Height	90mm
IP Rating	IP20
Length	53mm
Max. operating voltage	240V AC
Max. output current	1.9A
Max. output current 1	1.9A
Max. output current 2	N/A
Max. output current 3	N/A
Maximum Input Volage	240V AC
Min. operating voltage	100V AC
Minimum Input Volage	100V AC
Misc Attribute	6EP3321-6SB10-0AY0
Nominal value output current 1	1.9A
Nominal value output current 2	N/A
Nominal value output current 3	N/A
Nominal value output voltage 1	15V
Nominal value output voltage 2	N/A
Nominal value output voltage 3	N/A
Operating Voltage	100 - 240 V AC
Output voltage stabilized	true
Performance level according to EN ISO 13849-1	N/A
Phases	1
Power Consumption	N/A
Power Output	28.5W
Rated supply voltage AC 50 Hz	240 - 240V
Rated supply voltage AC 60 Hz	100 - 100V
Rated supply voltage DC	N/A
Secondary voltage adjustable	true
Short-circuit-proof	true
SIL according to IEC 61508	N/A
Stabilized	true
Suitable for distribution board	true
Suitable for rail mounting	true
Suitable for safety functions	N/A
Type of electric connection	N/A
Voltage type (supply voltage)	AC/DC
Wall mounting possible	true
Weight	170g
Width	36mm
Width in number of modular spacings	N/A
